A Comprehensive Fuel Analyser for Gasoline, Diesel and Jet Fuel

Eralytics (Austria) offers a truly portable NIR/MID-FTIR analyser that can measure all different kinds of fuels within a single unit. It generates highly accurate results for more than 40 fuel parameters and several important fuel properties, such as Octane and Cetane numbers. In addition, it measures Biodiesel (FAME) concentration in conventional diesel and jet fuel (EN14078). Of course it also supports the new ASTM D7806 Biodiesel standard. It is even capable to distinguish not only between FAME and FAEE but it can also detect vegetable oil that is added to Diesel fuel illicitly. The benzene concentration of gasoline can be determined according to ASTM D6277 as well as EN 238. The determination of oxygenates such as ethanol and MTBE is carried out in strict compliance with ASTM D5845.

In addition to the classic fuels ERASPEC offers modules for synthetic fuels and ethanol or methanol fuels. For ethanol fuel for example the impurities of water and methanol can be determined along with the actual concentration of ethanol itself.

ERASPEC also offers a built-in oscillating U-tube density meter following the ASTM D7777 standard. It accurately measures the density of your fuel automatically along with the other parameters. Each result can therefore be shown as Vol% or Mass%.

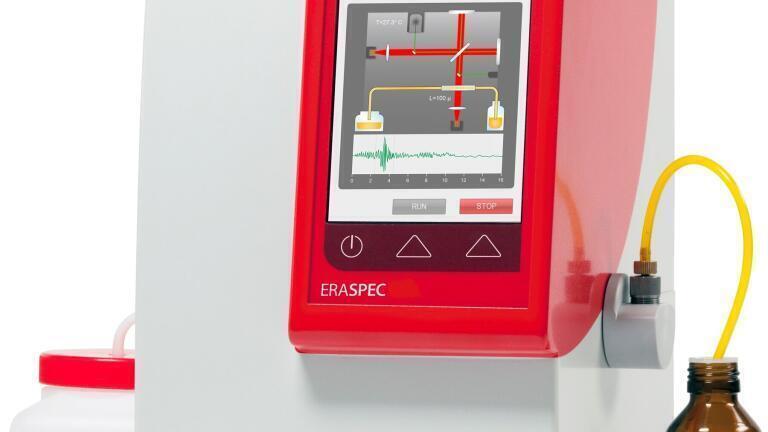

As a state-of-the-art analyser ERASPEC offers a large full color touchscreen. It stores up to 50.000 measurement results and for advanced users it even allows the direct comparison of spectra on the screen. Measurement results can be printed or transferred directly to a LIMS system.

The rugged, patented interferometer design is field-proven and has shown its reliability in challenging environments. With its portable design ERASPEC is the ideal choice for field tests directly at the point of sale in mobile laboratories.
