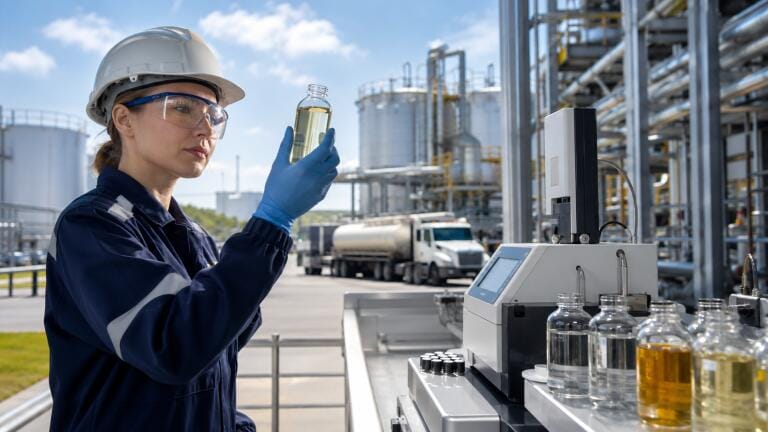

Record biofuel mandates put fuel quality monitoring in the spotlight

Biofuel industry news

Record biofuel mandates put fuel quality monitoring in the spotlight

13 Jul, 2026

When the US Environmental Protection Agency finalised Renewable Fuel Standard volume requirements for 2026 and 2027, it set the programme on a new footing.

The rule establishes the highest renewable fuel volumes in the history of the RFS.

Total renewable fuel requirements rise to 25.82 billion RINs in 2026 and 25.98 billion RINs in 2027, before additional small refinery exemption reallocation volumes are included.


Find your next fuel analyser in our international directory.


Biomass-based diesel volumes alone are set at 8.86 billion RINs in 2026 and 8.95 billion RINs in 2027.

For policy makers, the rule is a climate and energy security measure. For fuel producers, blenders, terminals, laboratories and distributors, it is also something more practical: a major quality control challenge.

The more renewable fuel that enters the diesel pool, the more important measurement becomes. Higher blend volumes mean that small errors in feedstock characterisation, blending control, storage management or batch release can quickly become operational problems.

A mandate written in Washington eventually becomes a sample bottle, a lab report, a tank movement, a certificate of analysis and a release decision.

More volume means more variability

Biodiesel and renewable diesel are often discussed together, but they behave differently in the supply chain.

Renewable diesel is a hydrocarbon fuel produced through refinery-style processes such as hydrotreating. Biodiesel, usually fatty acid methyl ester, has a different chemical structure and is more sensitive to certain fuel quality variables.

That distinction matters because the RFS does not simply create demand for more low-carbon fuel. It creates demand for more low-carbon fuel from a wider and more variable feedstock base.

Used cooking oil, tallow, distillers corn oil, soybean oil, canola oil, animal fats and other waste-derived materials can all support renewable fuel production. But they do not produce identical fuel quality outcomes.

Each feedstock has its own fatty acid profile. That profile affects cold flow behaviour, oxidation stability, viscosity, combustion performance and long-term storage risk.

For a fuel laboratory, this determines whether a winter blend performs reliably in a cold region, whether a tank can be released without delay, whether a distributor can document compliance, and whether an end user avoids filter plugging, instability or engine performance issues.

Reuters has reported that the new US mandates could require the biodiesel industry to increase production substantially after a weaker production year, with capacity, feedstock availability and actual output all under scrutiny.

The analytical burden moves downstream

Much of the public debate around the RFS focuses on whether the industry can produce enough fuel. But for the testing and instrumentation sector, the more immediate question is whether the market can handle more complex fuel safely and consistently.

ASTM D6751 is the central US specification for B100 biodiesel blendstock used in middle distillate fuels, while EN 14214 provides a major European reference point for FAME biodiesel quality.

These standards define the performance envelope within which biodiesel must sit before it can be blended, traded or used reliably.

Key parameters include kinematic viscosity, flash point, sulphur, water and sediment, acid number, oxidation stability, cold soak filtration, cloud point and cetane-related performance.

At low blend levels, some variability can be absorbed more easily by the fossil diesel pool. At higher volumes, that cushion becomes thinner.

A marginal B100 batch can have a larger effect on the final blend. A small error in blend ratio can create a bigger compliance issue. A seasonal mismatch between fuel properties and operating temperature can become more visible.

This is where the pressure moves from the refinery or biodiesel plant into the terminal, the independent laboratory and the distribution network.

Quality control becomes a logistics issue

Fuel testing is often treated as a discrete laboratory function, but in a high-volume biofuel market it becomes part of logistics.

A terminal cannot move fuel confidently without knowing what is in the tank. A blender cannot optimise production without fast feedback on blend quality. A distributor cannot manage seasonal supply if cold flow properties are uncertain.

The human consequence is that operators and analysts are being asked to make faster decisions with less room for error.

A lab technician may be dealing with more frequent samples from more variable incoming batches. A terminal operator may need to confirm that a blend meets specification before a truck loading window closes.

A fuel quality manager may be trying to reconcile RIN documentation, supplier certificates, in-house testing and customer requirements at the same time.

In that environment, turnaround time matters almost as much as analytical accuracy.

Traditional laboratory methods remain essential, particularly for certification and dispute resolution. But blenders and distributors are increasingly likely to want faster screening tools alongside formal test methods.

That is where portable mid-infrared analysers, benchtop biodiesel quality systems, online blend verification instruments and automated sampling systems become more commercially relevant.

They do not replace the laboratory. They reduce the number of blind decisions made before the laboratory result arrives.

Cold flow will remain a pressure point

Cold flow behaviour is one of the most operationally sensitive areas for biodiesel blending.

Biodiesel can gel, form crystals or plug filters at low temperatures, depending on feedstock, blend level and storage conditions.

The International Energy Agency’s Advanced Motor Fuels programme notes that cold flow properties affect whether biodiesel can be used reliably in particular regions and seasons.

This matters sharply in the US because fuel distribution spans very different climates.

A blend that performs adequately in the Gulf Coast may not be suitable for the Midwest in winter. A product that passes during warmer months may require different handling, additive treatment or blend limits when temperatures fall.

For monitoring professionals, this creates demand for more disciplined seasonal fuel management.

Cloud point, pour point and cold filter plugging behaviour become commercial risk indicators, not just specification values. They help determine whether fuel can move through pumps, tanks, filters and engines without failure.

As biofuel volumes rise, cold flow testing is likely to become more central to procurement, blending and release decisions.

Feedstock traceability and fuel quality are converging

The RFS is built around compliance credits but credit generation depends on confidence in fuel identity, production pathway and documentation.

That means analytical testing and administrative traceability are increasingly linked.

A certificate of analysis is no longer just evidence that a fuel meets a technical specification. It supports commercial claims about origin, blend content, regulatory status and eligibility.

For suppliers handling multiple feedstocks, multiple production pathways and multiple customers, this creates a need for joined-up systems.

Laboratory information management systems, automated sample tracking, digital certificates of analysis, tank-level measurement, inline blending data and RIN documentation all need to tell the same story.

Where they do not, the risk is not only off-spec fuel. It is delayed release, disputed ownership, rejected deliveries or regulatory exposure.

BQ-9000 may become more important

The voluntary BQ-9000 quality accreditation programme is likely to gain relevance in this environment.

BQ-9000 combines ASTM D6751 requirements with a broader quality systems framework covering areas such as sampling, testing, storage, retained samples and shipping.

That systems approach is important because many biodiesel quality failures do not come from one bad test result. They come from weak control between production, storage, blending and distribution.

A fuel may leave a production site within specification but deteriorate in storage. It may be blended correctly but sampled poorly. It may be compliant on paper but difficult to trace through a complex supply chain.

As RFS volumes rise, customers may increasingly treat quality accreditation as a practical risk filter.

For producers and marketers, accreditation can help demonstrate that quality is being managed continuously rather than checked only at the end of the process.

A market opening for instrument suppliers

For instrument manufacturers, the opportunity is not simply to sell more analysers.

The bigger opportunity is to help fuel businesses manage higher blend complexity without slowing down operations.

That could include portable instruments for rapid feedstock and blend screening, online systems for real-time blend ratio verification, automated viscosity and flash point testing, oxidation stability testing, water detection systems, and software that links analytical results to batch release and compliance records.

It also creates demand for instruments that can work in less-than-perfect environments.

Terminals, blending sites and distribution depots do not always look like controlled laboratory spaces. Equipment must be robust, easy to calibrate, simple to use and capable of producing results that operators trust.

The winning technologies will be accurate and fit into the working rhythm of fuel distribution.

Measurement is becoming part of biofuel scale-up

The RFS mandates are often described as a production challenge, and that is true. The US biofuel sector must produce, source and distribute more renewable fuel than before.

But production volume alone is not enough.

Every additional gallon has to be tested, blended, stored, documented and moved through a supply chain that was originally built around more predictable petroleum fuels.

That makes fuel analysis central to the next phase of biofuel growth.

If the industry scales successfully, it will not only be because more plants come online or more feedstocks are collected. It will also be because laboratories, terminals, blenders and instrument suppliers build the quality infrastructure needed to make higher renewable fuel volumes workable.

The RFS has raised the target. The next test is whether the fuel quality system can keep up.
