Fuel and Aviation Fuel Condition Monitoring Based on IP 577 as part of DEF STAN 91-91

Fuel is less viscous than oil. In low viscous fluids, the particles slump down in the liquid and build a sediment at the bottom of the bottle (sedimentation). Individual particles might also stick together during storage and become agglomerated bigger particles (agglomeration). Before a sample can be analysed via laboratory measurement instruments, it needs to be prepared with applied mechanical energy to re-disperse the particles in the liquid. Before undertaking laboratory particle analyses, the sample thus must be adequately prepared for measurement. In case of online measurement, sample preparation is not at all afforded, as the liquid is directly taken in its original physical state during operation. To avoid phenomena of sedimentation and agglomeration during measurement, particle counters for fuel analysis are equipped with special features, adapting them best to the specific requirements of fuel condition monitoring.

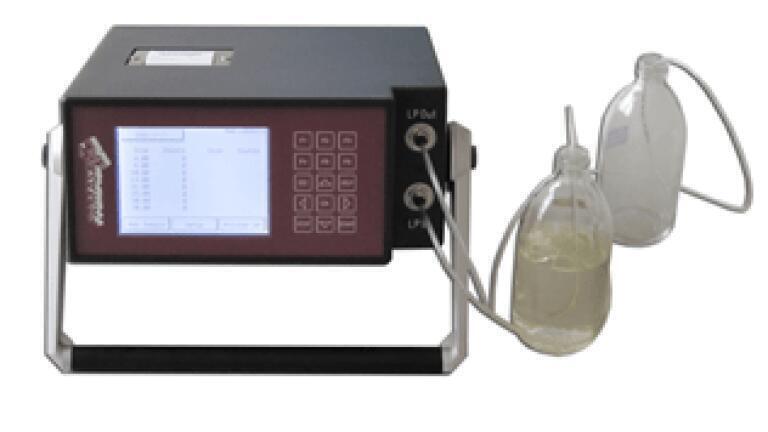

For Jet fuel analysis, PAMAS (Germany) has developed the portable particle counter PAMAS S40 AVTUR which can be used both for online and batch sampling. The system is compliant with the IP 577 analysing method of the Energy Institute London and to the DEF STAN 91-91 standard of the British Ministry of Defence.

Beyond Jet fuel, the PAMAS S40 AVTUR is also used for testing diesel and other fuel types.
