Portable, fast and precise FAME determination in jet fuel testing

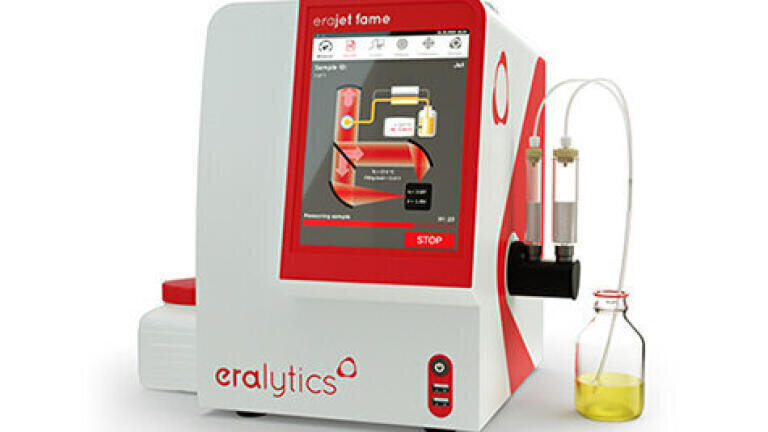

The ERAJET FAME, is the latest, exciting addition to the eralytics family of fuel analysers. ERAJET FAME is a rugged and truly portable stand-alone NDIR spectrometer for the ultra-fast and easy determination of all types of FAME in jet fuel. The fully automated analyser has made FAME determination in jet fuel with lab-grade precision in excellent correlation to international IR (ASTM D7797, IP583) as well as GC (IP585, IP590) standards a simple task.

There are many reasons for eralytics to be excited about their new analyser’s many features that make it unsurpassed in the industry in terms of cost effectiveness and efficiency. With a repeatability of only r ≤ 4 mg/kg and a reproducibility of R ≤ 6 mg/kg, ERAJET FAME measures with lab-grade precision over a wide measurement range of 10 to 250 mg/kg (ppm) for AVTUR.

This ultra-fast and fully automated analyser offers an unrivalled measurement time of only 5 min making ERAJET FAME the fastest FAME in jet fuel analyser on the market. With its easy to use interface and the fully automated measurement including the sample introduction, ERAJET FAME is the perfect solution even for untrained operators. Cleaning and rinsing the instrument are also simple tasks as no special solvent is required.

The ultra-light and rugged metal housing with its small footprint makes ERAJET FAME equally suited for lab applications and field use. It is perfectly suited for straightforward, on-site operation even in remote locations with limited access to technical infrastructure, but still working with lab-grade precision.

eralytics’ innovative DENS4052 EXT temperature-controlled, high-precision density meter module is optionally available for direct connection with ERAJET FAME. Weighing only 1.3 kg, DENS4052 EXT is the lightest and smallest density meter on the market measuring in full compliance with ASTM D4052. Connected to ERAJET FAME it enables simultaneous high precision measurement of density and FAME content of AVTUR.
