Highest Safety Standards in GUM Content Testing

Analytical instrumentation

Highest Safety Standards in GUM Content Testing

16 Feb, 2015

Published over 11 years ago. See the latest and most current information on Analytical instrumentation.

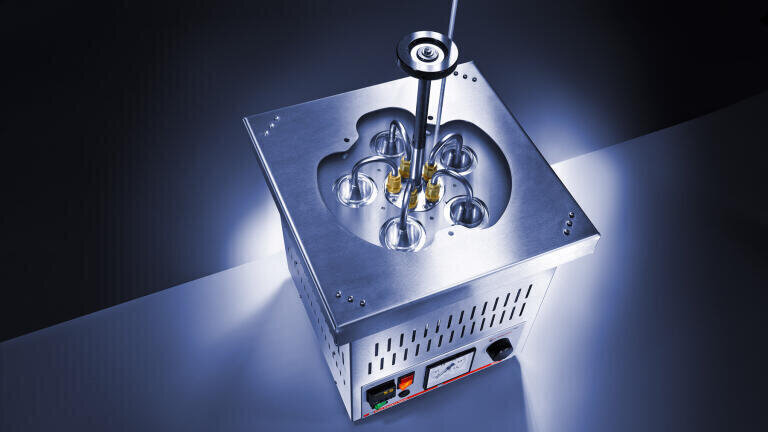

The GUM content tester from Anton Paar was especially designed to provide the highest operational safety and easy handling of evaporated, highly flammable samples like gasoline and jet fuel. The instrument meets the requirements of e.g. ASTM D381, ISO 6246 and DIN 51784.

The unique, patented multi-function head was designed for the safe and simultaneous positioning of all 5 pre-adjusted jet tubes. No manual handling or assembling of the hot conical jet tubes is required. After one turn only, all tubes are in their resting, pre-heating or working position. The position of the handle assures that neither steam nor hot air is hazardous to the operator.

Safe withdrawal of condensed water from sample beakers and the compensation of uncontrolled steam eruptions are assured by an efficient draining system. In addition, the GUM content tester comes with a thermal protection shield and over-temperature protection cut-off for higher safety. With its small footprint of only 40 cm x 40 cm the instrument saves expensive fume hood bench space in the lab.

Two different versions of the GUM content tester are available: an air-operated GUM tester as well as an air- and steam-operated GUM tester. The air-operated version can be heated up to 246°C and is therefore also suitable for jet fuel tests. Depending on the model, additional accessories are required.
