Continuous and Accurate Hydrogen Sulphide Measurement

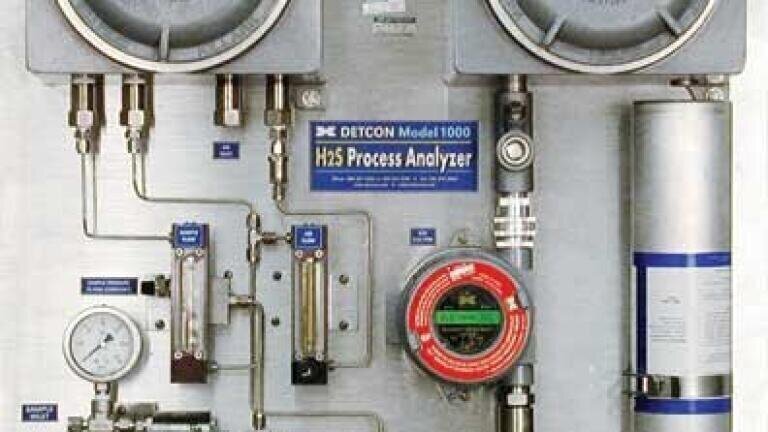

Detcon’s (USA) new High Range Model 1000-H2S Process Analyser is designed to provide continuous, accurate real-time measurement of hydrogen sulphide gas concentrations in a wide variety of gas streams. With new technology and design, the High Range Process Analyser has a measurement range of 0-1,000 ppm with up to 2% standard and up to 5% with additional high range applications packaging.

All process analysers in the Model 1000 Series employ Detcon’s 3-Electrode Electrochemical sensor element and feature a microprocessor-based signal-conditioning transmitter with local digital display, fault supervision, calibration mode indicator, 4-20mA, alarm relays and RS-485 serial port outputs. The instrument package is rated (explosion-proof) Class I, Div I, Groups B, C, D.
