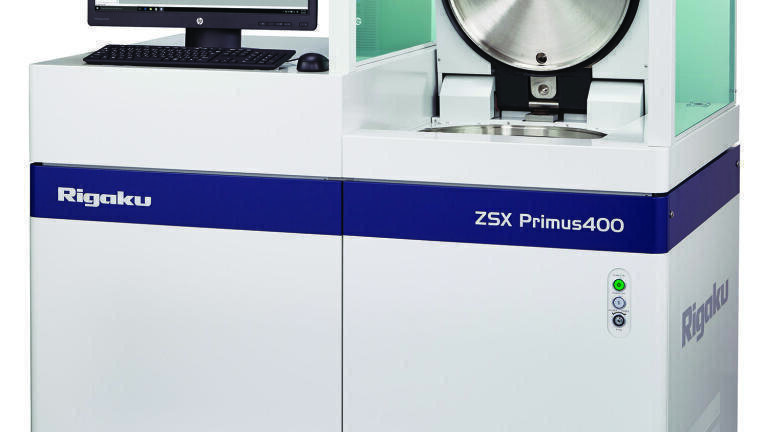

SX Primus 400 WDXRF for Very Large Samples

Rigaku's unique ZSX Primus 400 sequential wavelength dispersive X-ray fluorescence (WD-XRF) spectrometer was specifically designed to handle very large and/or heavy samples. Accepting samples up to 400 mm diameter, 50 mm thick and 30 kg mass, this system is ideal for analysing sputtering targets, magnetic disks, or for multilayer film metrology or elemental analysis of large samples.

All analytical capabilities of a traditional instrument are retained in this "large sample" variant. Analyse beryllium (Be) through uranium (U) with high-resolution, high-precision WDXRF spectroscopy, from solids to liquids and powders to thin films. Having the versatility to adapt to your specific sample types and analysis needs, this WDXRF spectrometer is adaptable to various sample sizes and shapes using optional (made to order) adapter inserts. With a variable measurement spot (30 mm to 0.5 mm diameter, with 5-step automatic selection) and mapping capability with multi-point measurements to check for sample uniformity, this uniquely flexible instrument can dramatically streamline your quality control processes.
