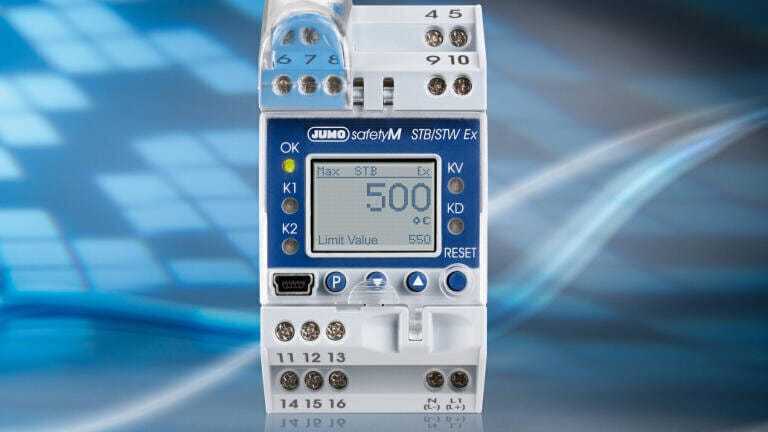

Safety Temperature Limiters/Monitors with ATEX Approval

The new safety temperature limiters/monitors (safetyM STB/STW Ex) based on ATEX directive 94/9/EC from JUMO (Germany) represent the latest state of the art in safety engineering and complete the JUMO product portfolio in this area.

The compact and freely-configurable safetyM STB/STW Ex with ATEX approval can now also be used for the reliable and early detection of potential dangers in the Ex zone that could lead to personal injuries, damage to the environment, or destruction of production systems and industrial goods.

The instruments are available in versions Ex II (1) G [Ex ia Ga] IIC and Ex II (1) D [Ex ia Da] IIIC

The primary tasks of safety temperature limiters are to monitor thermal processes and to bring systems to a safe operating state in the event of a malfunction.

Other than previous approvals according to DIN EN 14597, SIL 3, PL e (Performance Level), and GL JUMO devices now have ATEX approval as well and can therefore also be used in Ex zones.

The inputs are intrinsically safe [Ex ia] so that the corresponding probes can be directly connected. Therefore the use of a barrier is no longer necessary. The instrument is also certified according to DIN EN 50495 and DIN EN 13463-6 as an ignition source monitor (iPL 2) according to the ATEX directive.

The new JUMO safety temperature limiter/monitor can be used to monitor critical processes in potentially explosive gas and dust atmospheres.

It also meets the highly demanding requirements of DIN EN 61508 or DIN EN ISO 13849 due to a device concept that ensures reliable detection of errors thanks to its 1oo2D structure. As a result, it can also be used for applications based on the new Machinery Directive 2006/42/EC.

The measurement input has a wide range of linearisations. It is freely configurable for RTD temperature probes, thermocouples, as well as current, voltage, and differential measurements. Two relay outputs (pre-alarm and limit value alarm) switch the process to a safe state in case of an error.

Process values can be transferred to a recorder, controller, or higher-level control system using the standard analog output.

Additional features such as password-protected access and adjustable level inhibit increase operational security and ensure greater safety for your process. Power supplies are available from AC 110 to 240 V (-15/+10 %), 48 to 63 Hz, or AC/DC 20 to 30 V, 48 to 63 Hz.
