Complete Series of ATEX Approved Pressure Transmitters

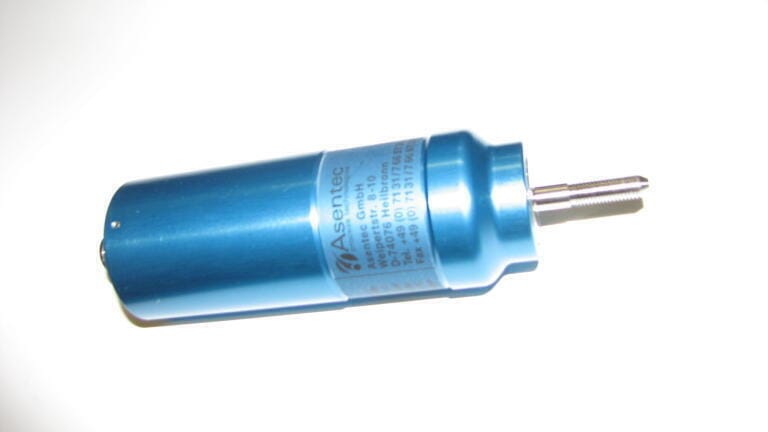

With an accuracy of better than ± 0.15% f.s., the PTEEXi series from Asentec (Germany) can be used as a calibration reference or in applications where high accuracy pressure measurement is required from safety valve checks to system pressure verification. This certificate will allow the PTEEXi to be used in any industry where there is a risk of flammable gases or dust. These include oil refineries, off-shore platforms, chemical plants, gas production plants, oil and gas shipping or any other hazardous area such as in pharmaceuticals.

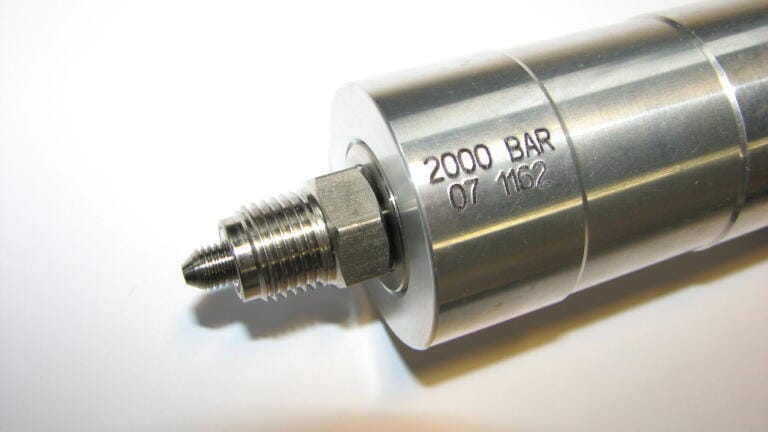

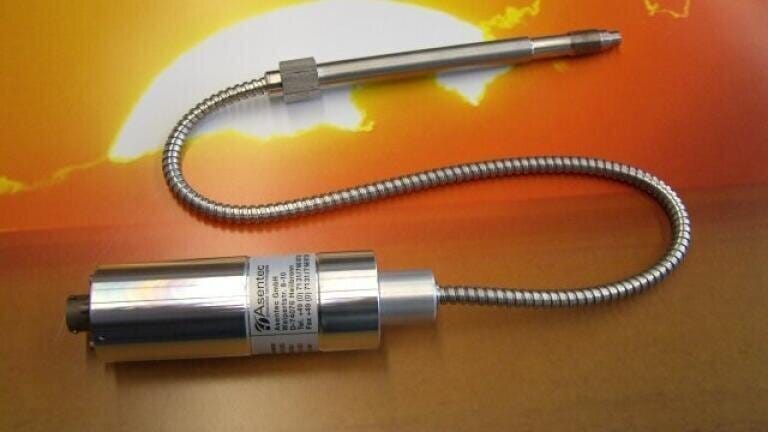

Various pressure ports and liquid filled capillary systems open a large number of applications. The following ports are available; G1/4“, G1/2“, ½” NPT, ¼“ AEHP, ½“ 20UNF, M10x1, M18x1.5, PF3/4“ with others available on request.

The ATEX certificate includes: II 1 G Ex ia IIC T1-T5= 80°C, T6 = 75°C Ga for gas, and II 1 D Ex ia IIIC T85°C Da IP63 for dust. Other certificates including, Gost, IECex, including others are in preparation.

Asentec GmbH is a manufacturer of pressure and temperature transducers for special applications. Asentec is known as a problem solver. You name the task – Asentec solves the problem.

Contact person: Dolores Kirschner

Tel.: +49 (0) 71 31 7 66 97 30

Fax: +49 (0) 71 31 7 66 97 39

e-mail: [email protected]
