ERAVAPTM Vapor Pressure Tester – Highly Precise, Easy to Use and Comfortable Maintenance

Dec 22 2017

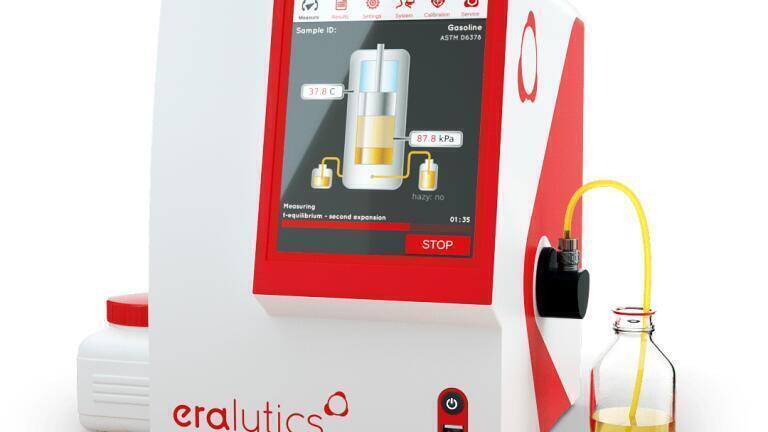

eralytics proven ERAVAP vapor pressure tester is the State of the Art vapor pressure tester when it comes to combine high precision and true portability with an easy to use and compact instrument.

ERAVAP vapor pressure testers measure the pressure exerted by a vapor in thermodynamic equilibrium with its condensed phases (solid or liquid) at a given temperature in a closed system. Vapor pressure testing is important to comply with environmental regulations and serves as safety check in the transport and storage of crude oil as the vapor pressure indicates how the crude oil performs during handling.

ERAVAP is suitable for numerous sample types like gasoline, crude oil, LPG, jet fuel or solvents and is compliant with the latest standards e.g. ASTM D5188, D5191, D6378. Additionally, ERAVAP is compliant with all three parts of the European Standard EN 13016 1-3.

With its unmatched temperature range ERAVAP is the only vapor pressure tester on the market which covers a temperature range from -20 °C to 120 °C (-4 °F to 248 °F). The used Pure SamplingTM valve technology reduces any cross-contamination. The built-in quality control mode considers predefined warning levels and automatically alerts the operator of any out-of-control situations. Moreover, with ERAVAP no external vacuum pump is needed.

The high-value full metal housing allows easiest and comfortable calibration and maintenance through an easy removable housing, the inner parts are simply accessible.

The integrated 8” touchscreen offers operations in many languages and results are available within a few minutes. Each instrument is equipped with five USB ports and due to its portability ERAVAP is used in many mobile laboratories and testing laboratories around the world.

The universally used, high precision ERAVAP EV10 covers a pressure range up to 1000 kPa. ERAVAP EV20 measures with an extended range. Both models include a built-in shaker motor and are used for gasolines, crude oils and LPG.

Depending on the customer needs diverse extensions meet all requirements: the EV01-COOL Low Temperature Module, the EV01-VISC High viscosity module and the EV01-LOW Low vapor pressure module. With the autosampler-module an optional 10 position autosampler can be attached.
