Aspirated Analysers for Measurement of Oxygen Combustibles and Methane in Flue Gas Streams up to 1648°C

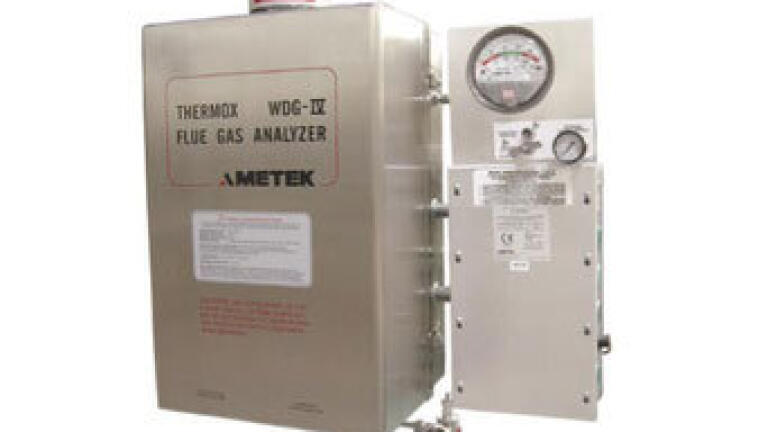

The WDG-IV series analysers from Ametek Process Instruments (USA) mount directly on the combustion process and are designed for direct measurement in high temperature flue gas applications such as fired heaters and furnaces, but are also equally at home on other lower temperature applications

These analysers are suitable for gas streams up to 704°C using the standard 316SS probe/filter assembly. Flue gas temperatures up to 1648°C can be measured using optional high temperature probes.

For corrosive gas streams, sample wetted parts in Hastelloy® or Inco¬nel® are available. The analysers can be provided with separate control unit (Series 2000) or integral on-board electronics (Smart Sensors) and are offered in a range of mounting styles. Optional combustibles and methane detectors are available for optimal control of the combustion process. The aspirated analysers have the following ATEX approvals; LCIE 05 ATEX 6140 X and LCIE 05 ATEX 6140 X / 0.
