Vapour Pressure Measurement of Gasoline, Crude Oil and LPG

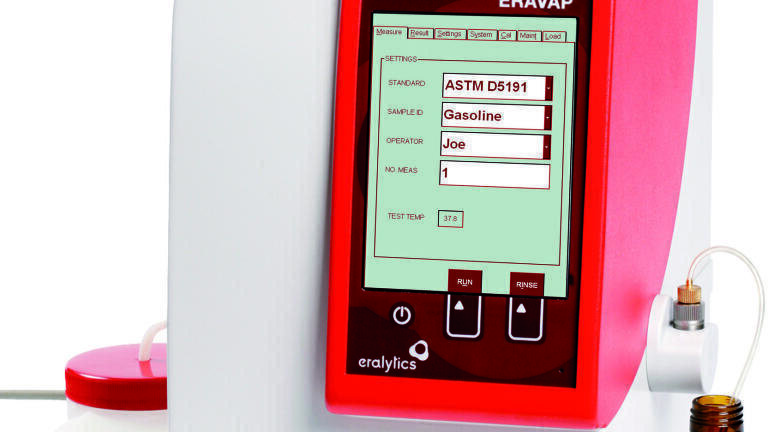

Eralytics (Austria), proudly presents the Eravap, the world-wide first analyser for the fully automated vapour pressure measurement of gasoline, crude oil and LPG with a single portable instrument. Additionally, the vapour liquid ratio temperature of gasoline (ASTM D5188) and the vapour pressure of gasoline (ASTM D5191) can be measured fully automatically with Eravap’s so called ‘Speed Test’. Both measurements are started with a push-of-abutton and both results are displayed and stored under the same sample ID.

Eravap’s innovative and maintenance free measuring principle in combination with the built-in measuring cell shaker guarantee extremely fast and still highly precise VP measurements in full compliance to all the latest ASTM vapour pressure standards like ASTM D6377, D6378 & D6897.

A built-in industry PC with Ethernet and USB interfaces allows for advanced data management and direct LIMS connectivity. The intuitive menu structure on the large, industry proven color touch screen ensures easiest operation and even allows for statistical quality assurance according to ASTM D6299 with graphical control charting of up to 8 different QCsample profiles directly on the Eravap.
