Programmable Viscometer for Multi-products References

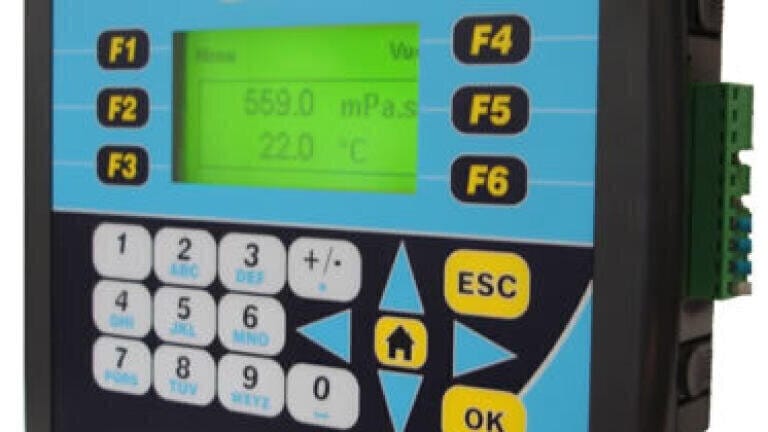

Sofraser (France) is pleased to announce the availability of the 9602 processor, its new model of 9600 series.

The new 9602 model manages applications handling up to 8 different products owing to its 8 selectable parameters settings.

Owing to its LCD display and user-friendly menu it is an easy job to configure the sets of parameters for each different product and switch rapidly from one to the others at the beginning of a new batch.

For each product, setting parameters enable end-user to customize viscosity unit (Pa.s, mPa.s, P, cP, cSt), viscosity correlation (cup seconds, concentration, dry extract, …), alarm limits, current outputs limits, reference temperature and data for viscosity calculation at reference temperature. Product selection can also be performed by logic signals.

Matched with Sofraser MIVI process sensor, 9602 viscosity processor is the reply for viscosity measures from 0.01mPa.s to 1,000,000mPa.s, -40°C to 300°C, vacuum to 500bar, in sanitary or hazardous environments.
