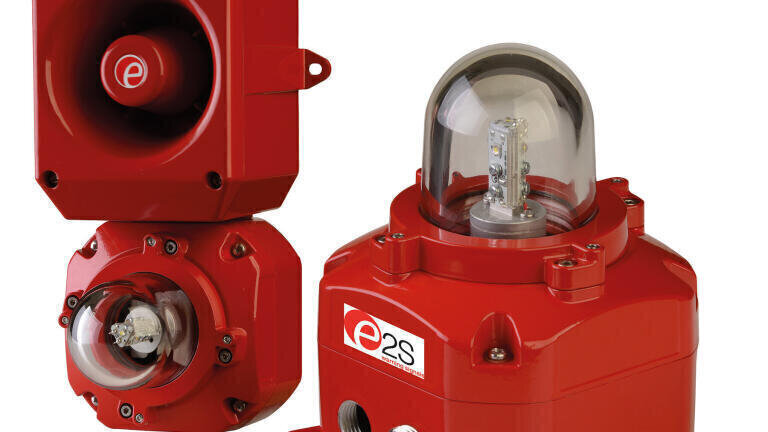

Unique D2x Xenon and LED synchronised beacons approved for Haz. Loc. use in UL1971 public fire systems

Sep 19 2018 Read 1562 Times

Enhancing life safety by enabling systems integrators to extend automatic fire detection systems into hazardous areas, the D2x family of beacons and combined alarm horn/beacon units from E2S Warning Signals are compliant to UL464 and UL1638/UL1971 for public mode fire alarm installation as emergency signalling devices for the hearing impaired, as well as private mode fire and general signalling applications. All versions feature innovative electronics that automatically synchronise multiple beacons on the same circuit without the need for additional modules to reduce overall system cost and installation time.

The D2x1BLD2-H utilizes an array of high power Cree® LEDs, orientated to optimise visibility in any direction. The D2xB1XH1 5 Joule Xenon strobe beacon and the D2xB1XH2 10 Joule Xenon strobe beacon both offer exceptionally low inrush and operating currents that optimise cable selection and reduce power supply requirements. The D2x units carry global approvals: UL/cUL for Class I Div 2, Class II Div 2, Class I Zone 2/22 and IECEx and ATEX certification for Zone 2 and 22 hazardous area applications. For complete audio-visual notification the D2xC2LD2-H combination unit provides the ultimate in fire signalling. A sound output of up to 116 dB(A), 64 alarm tone frequencies and 4 remotely selectable stages/channels ensures that the UL464 alarm horn can provide safe signalling for multiple scenarios from one device. The UL1971 LED beacon can be linked internally to the alarm horn to minimise cabling requirements and reduce installation time.

Under UL1971 Public Mode test conditions, the D2xB1LD2-H beacon produces an output of 38.38 cd, the D2xB1XH1 Xenon strobe: 18.18 cd and the D2xB1XH2 Xenon strobe: 70.29 cd - the brightest Haz. Loc. fire signals available. All versions are housed in marine grade aluminium enclosure with an ingress protection of IP66, NEMA Type 4 and 4X providing protection in the harshest of environments.
