New Unique Pressure Calibrator is on the Right Traqc

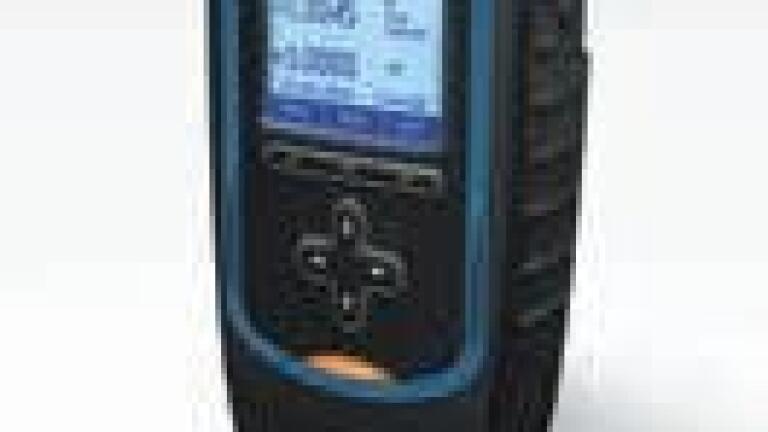

Tradinco Instruments (Netherlands) introduces the Traqc-7 PC. A truly unique combination of compactness, ruggedness and functionality in one single instrument the market has not seen before.

The Traqc-7 PC is the solution to perform common pressure calibrations in the most efficiënt and easy way. All required functionality is integrated in one rugged handheld instrument. The calibrator has an ergonomically integrated handpump, for both pressure and vacuum and is designed to generate your test pressure fast, light and easy.

Fine control of the pressure is done with the volume regulator and ventvalve.

The measured pressure and output signal of the transmitter is clearly shown simultaneously on the large and bright display. Complete calibration procedures and results can be stored in the memory of the instrument in combination with the AutoCal® calibration management software.

The operation of Traqc-7 PC is very easy and self explanatory, using only three function keys and four navigation keys. The instrument has a very high accuracy of 0,02% FS and can be supplied in almost every range up to 20 barg. It has the capability of measuring the common mA and V signals, a comprehensive loop calibration functionality and has a pressure transmitter simulation function. The Traqc-7 PC can also be used for testing both powerless and powered (even up to 240VAC) pressure switches making it most suitable for your daily calibration tasks.

The Traqc-7 PC is developed by calibration engineers for calibration engineers resulting in an unique instrument in which 50 years of experience and know how are combined. Specifically designed for the daily use in the field. Reliable, rugged, fit for the job and capable of doing what it should: Testing, measuring and calibrating in the plant.
