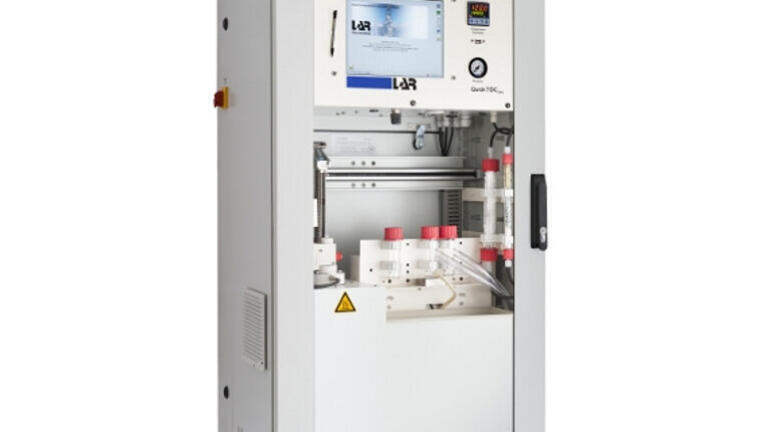

Custom-fitted TOC process analyser

LAR's TOC process analyser QuickTOC_ultra is a measuring system for complex water applications. Due to a patented injection and oxidation technique, the analyser easily handles sticky, fatty, salty, and high-particle samples. The sample is injected via a robot-driven injection system to the furnace, whereby pre-treatment or dilution is unnecessary. In the furnace, the sample is combusted at 1,200°C. Based on the high temperature, the organic content is completely oxidized to CO2. Hence, operators do not need expensive oxidation promoting catalysts. Besides, the QuickTOC_ultra convinces with a fast response time of less than three minutes as well as with a high availability of up to 98%. The TOC analyser is operated by touch-screen display. The TOC analyser can be adapted to the requirements of the different applications by means of modules such as the measurement of 6 sample streams in one analyser. The custom-fitted analysers are optimally suitable for monitoring and optimization of industrial processes and municipal as well as industrial waste water treatment plants.
