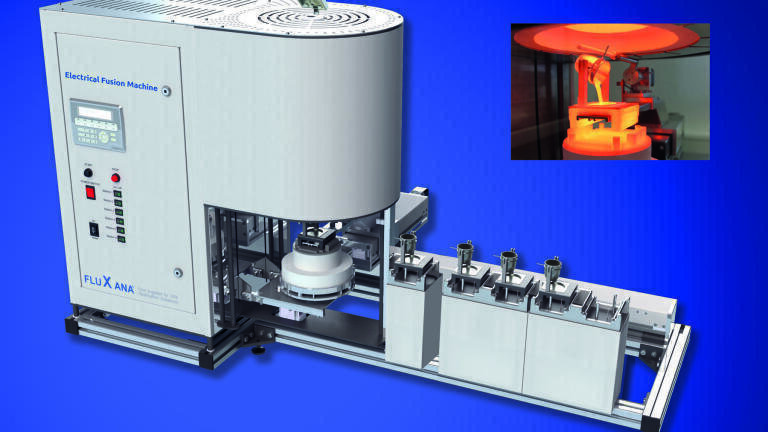

Electrical Fusion Machine made by FLUXANA

Electrical Fusion Machine:

· Fully automatic cold to cold operation for 1, 2, 4 or 6 samples; 1 sample at a time

· Highest precision for all kinds of material

· Full microprocessor control with a storage for 10 different application settings

· High temperature control allows use of applications with variable temperature settings

· Works with all common flux mixtures

· Compatible with VULCAN gas fusion machine (no new calibration necessary)

Exclusive Features:

· Lift bottom furnace

· Agitation by high speed rotation (250 rpm, bidirectional)

· Observation of the sample during fusion using a mirror

· Crucible holder and oven floor made from FLUXinert®® ceramic (no attack from lithiumborate, can be cleaned in diluted HCl)

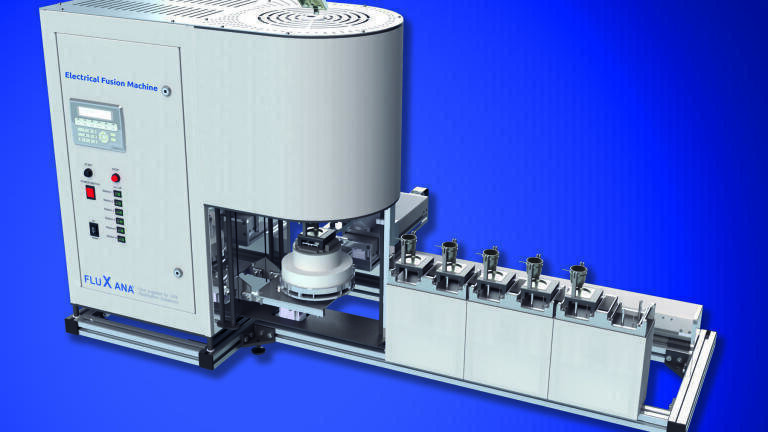

· Autosampler handles up to 6 samples automatically

· Modular upgradeable system to a total of 6 positions

· Optional: Extra position for continuous operation available (loading and unloading of samples during fusion program)

· Optional: Use of lids on the crucibles for volatile elements like F, Cl or S

· Optional: Oven ceiling made from FLUXinert®®

The fusion technology is used to prepare samples to be analyzed with an X-ray fluorescence machine. It is also used to improve precision over pressed powder technology.

Using your Electrical Fusion Machine in combination with the extractor hood will ensure that every bead is produced under the same constant conditions!

German utility patent, international patent pending

FLUXANA offers ready to go application packages including all calibration samples. Please click here for more information.
