High Accuracy Dry Block and Liquid Bath Calibrator

Measurement and testing

High Accuracy Dry Block and Liquid Bath Calibrator

26 Oct, 2009

Published over 17 years ago. See the latest and most current information on Measurement and testing.

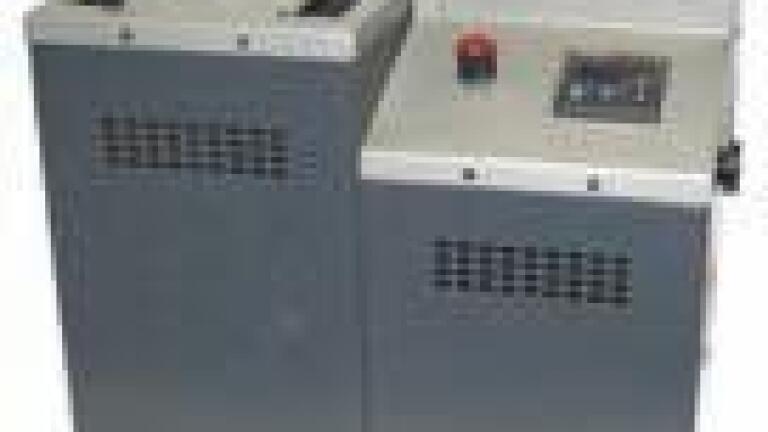

E Instruments’ (USA) affordable TCS140 is both a portable dry block and liquid bath calibrator.

The Dry Block insert is easily replaced with a Liquid Bath complete with an easy-to-use adjustable speed agitator. It is ideal tool to calibrate glass thermometers and for short thermocouples and thermoresistors.

The TCS140 features a temperature range from –55°C from Tamb to 140°C, with stability of the dry block at ±0.035°C and the liquid bath at ±0.02°C. Radial uniformity for the dry block is ±0.02°C and ±0.004°C for the liquid bath. The TCS 1400 enjoys rapid speed both for its heating speed (-30°C to 140°C in 15 mins) and cooling (140°C to 0°C in 15 mins), with a stabilisation time of 10 mins. The liquid container comes as standard the optional CalPMan software that plans, manages and documents all your calibrations and certifications is also available.
