Compact Depth Gauge Offers Good Value for Money

Aug 07 2008

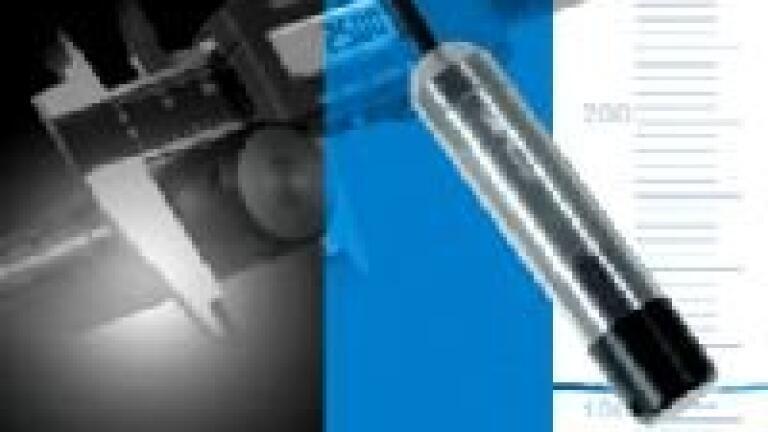

Baumer`s (Germany) Process Instrumentation Product Segment launches a very compact depth gauge with excellent value for money, the hydrostatic pressure transmitter ED753.
Like his bigger brother ED752, the ED753 is a piezoresistive pressure transmitter with stainless steel housing and is therefore very resistant against aggressive substances. However, since the device is thinner and shorter, it is especially suitable for applications with very limited space and fits in 1 inch pipes often used for the
guiding and protection of transmitters.
As the youngest member of the family, the ED753 is provided with all the advantages of the ED75X series. The housing has been designed according to protection class IP 68. The ventilation is realised by a
tube integrated in the cable, enabling the measuring device to adjust to the ambient pressure. The measuring range reaches from 600 mbar to 20 mbar. The accuracy has been designed for most standard applications, and the device has been optimised to offer an excellent value for money.
Depth gauges are suitable for the level measurement of any liquids. The application is very easy as no special installations like welded sleeves are needed and no interventions or modifications at the
tank are necessary.
The devices are simply inserted into the liquid via cable, where they release an output signal analogue to the pressure, respectively level, of the liquid in which the pressure transmitter is submerged.
