Measurement and Testing
Eco-Friendly Alternative to Fluoropolymer Heating Cables in the T4 Temperature Class
Oct 19 2012

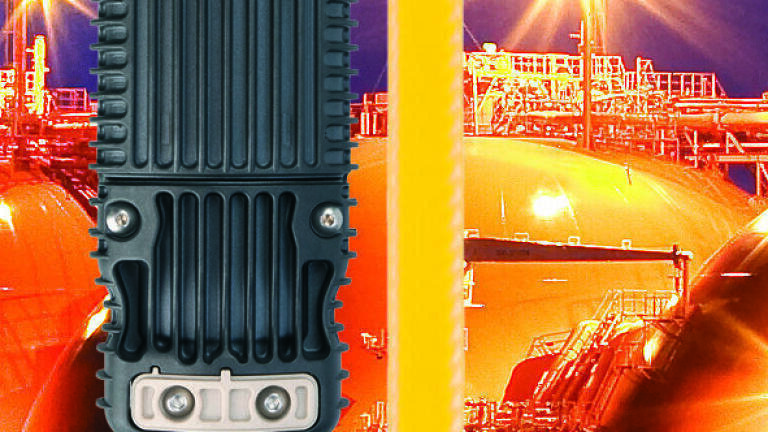

BARTEC (Germany) have completed their portfolio of heating cables for electric trace heating: the newly developed, self-limiting MSB heating cables close the gap between the self-limiting PSB and HSB heating cables that are currently available. They are suitable for use in the T4 temperature class (94/9/EC) and are heat resistant up to 150 °C. For safety reasons, the heating cables are approved for maximum operating temperatures of +110 °C when on and +130 °C when off.
In a first for heating cables, MSB heating cables do entirely without fluorinated plastics. They are completely halogen-free, releasing no toxic or caustic gases in a fire or after disposal. Thanks to the TPC sheathing, the heating cables are resistant to corrosion and the chemical effects of oils, lubricants and virtually all chemicals. In contrast to standard fluoropolymer heating cables, the investment costs are considerably lower in an MSB heating circuit.
In addition to the heating cables, BARTEC also offers the compatible connection technology for installing complete heating circuits certified in accordance with IEC and EN 60079-30-1. Due to the variations and combinations available with this type-tested and approved heating system, individual, on-site inspections are no longer necessary.
