One device, two temperature instruments

Nov 26 2020

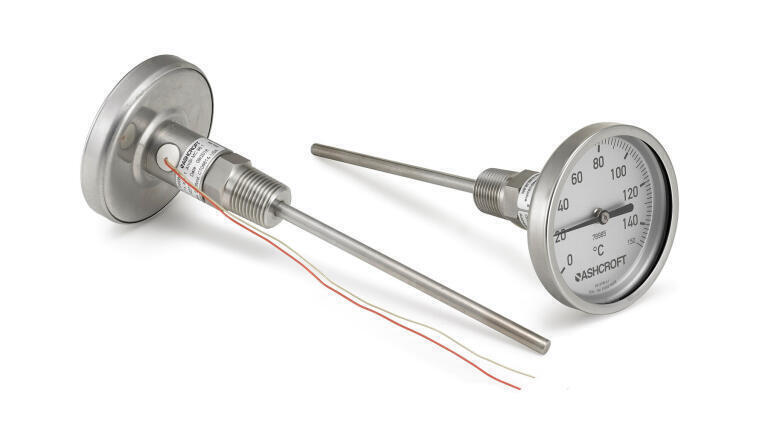

The Ashcroft Model K dual sensor thermometer combines two independent temperature sensing devices into a single instrument. For local indication, a silicone-dampened mechanical ANSI/IEC/EN classified bimetal system drives the pointer over an 80, 100, 130, or 150 mm diameter dial. Your choice of a stem from 90mm to 2000 mm also contains a type K thermocouple to signal a remote readout, data acquisition device or control system. While providing these two distinct capabilities, the Ashcroft Model K only requires a single process connection point. This multi-capable design will save both installation time and the cost of purchasing two separate instruments.
