Highly Reliable Hydrogen Sulphide Process Gas Analyser

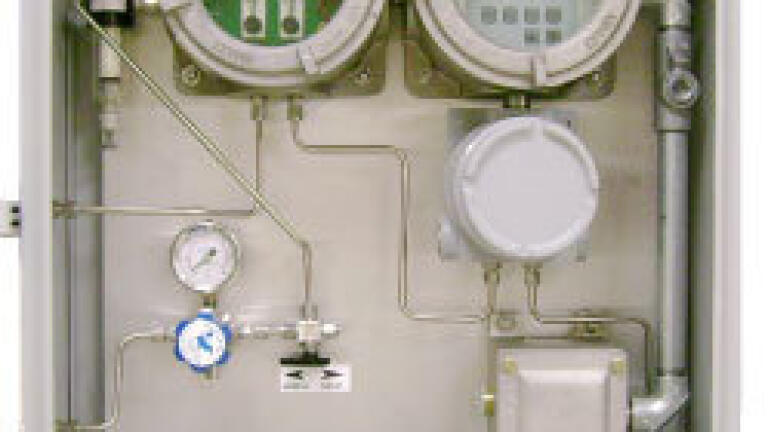

The Model PT605 H2S Process Analyzer, from Pem-Tech (USA) has been designed for the detection of Hydrogen Sulphide in process streams and in natural gas pipelines.

The system is cost effective while being highly accurate and reliable. This H2S Process Analyzer has an industry standard 4-20mA output and three programmable alarm relay contacts are provided. These relay contacts can be used to control shut in valves or various alarm devices. A large LCD display with back light and push button switches on the front panel are provided for easy user interface calibration.

Also available on this H2S analyser is a real time clock and non-volatile memory for historical data logging. The unit is MODBUS RTU serial communication compatible with PLC’s, SCADA, and DCS systems. This PT605 Analyzer provides complete status of current gas concentration, last successful calibration date and time and current alarm status via MODBUS link. The alarm levels can also be accessed and programmed via MODBUS.
