Real Time Color Analysers for Pipeline Measurements Achieve ROI within Days

Feb 21 2018 Read 707 Times

Many liquid product specifications are based on color measurements. Changes in color can be an indicator of final product quality as well as a means to control process variables when implemented in real time. There are different color “scales” that apply to different products or industries. Some common examples are Saybolt, ASTM, and APHA (aka Platinum-Cobalt, or Hazen). Measuring the Saybolt or ASTM color online is a key parameter in many light hydrocarbon mixes for quality control to detect the C6+ hydrocarbon carryover. Monitoring the color allows the refinery to verify that the product is within specification. Any “out-of-spec” product can be reprocessed before being sold.

LNG Measurements Using Saybolt Color Analyser

For example, given the large volumes of liquefied natural gas (LNG) under transport, ROI from using real-time measurement systems, such as Guided Wave’s Saybolt Color Analyser, can be measured in days. Prior to liquefaction, residual materials are removed with only clean hydrocarbons remaining. The composition of natural gas can vary slightly from different producing locations. Typically LNG is a colorless material, but during distillation the carryover of larger hydrocarbons (C6+) can affect the color of LNG.

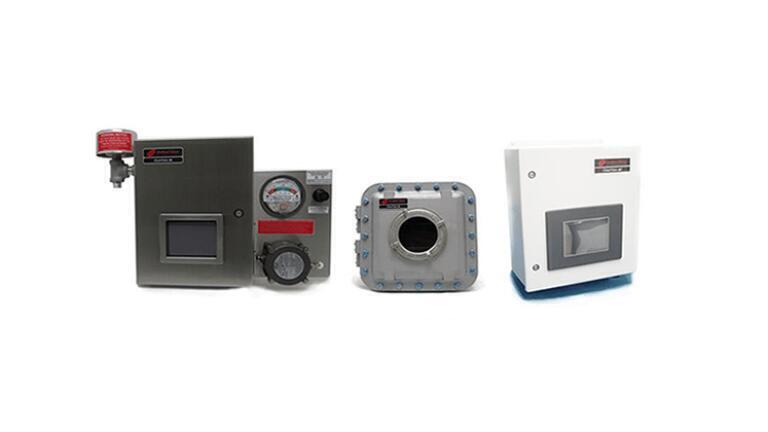

Guided Wave’s NEW Saybolt Color Analyser is based on the adaptive ClearView® db platform. The ClearView db instrument can be programmed to measure many different parameters of many different samples, i.e., it can be adapted to customers’ current and future measurement needs without significant hardware changes and with few restrictions.

Since the ClearView db analyser can be configured for different color scale measurements, it is possible to have a two channel ClearView db analyser configured for two different color measurements such as ASTM (D1500, D1524) and Saybolt, accomplishing both measurements with one analyser simultaneously saving customers time and money. The Saybolt Color Analyser is calibrated for Saybolt and is a ready-to-go solution for accurate, real-time, reliable fuel quality and control results.

The Smart Choice for Reliable Color Measurement: ClearView db

Guided Wave color analyzers are built on the proven multi-wavelength ClearView db technology. This filter photometer is a dual beam design that provides increased stability and higher accuracy over other single beam photometers. The complete “ready-to-go” analytical systems from Guided Wave include:

  • Analyser (photometer)
  • Fiber optic cables
  • Sample interface (probe or flow cell)
  • Control software and pre-calibration to the specific color application.

35 Years of Process Experience

With analysers installed worldwide Guided Wave offers total solutions with optically matched components and a well-planned calibration approach leading to your long term solution, success and overall cost savings. Guided Wave provides expert technical support and responsive global service for the lifetime of the system. Click Here for the LNG and many more Refinery Application Notes.
