Siemens SITRANS FUH1010

Jan 11 2008 Read 1251 Times

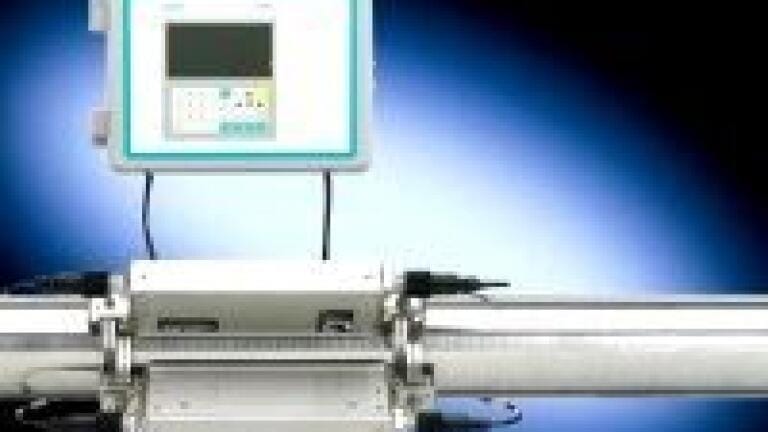

Siemens Inc, SITRANS FUH1010 is an ideal flowmeter for pipelines carrying crude oil, refined petroleum or liquefied gas. It is easily installed in the field, using WideBeam transit-time ultrasonic transducers. The system provides the operator with reports regarding batch interface and product quality information. Its extremely high resolution, wide rangeability and stability make the unit ideal for leak detection applications.

Gross or net (standard) volume as well as mass flow can be displayed and outputted in RS232, pulse rate, 0-10 volt and 4-20 ma format. Communication protocols can be provided for customer or Siemenssupplied
networks. An internal 1-MB datalogger stores system operation and condition diagnostics. Two, Three, or Four Beam, NEMA 4X (Div 2) and NEMA 7 (Div 1) systems are available, depending on user specified performance and installation conditions.
