ATEX Approved Flow Analyser Provides Continuous Digital Displays of Flow Rate

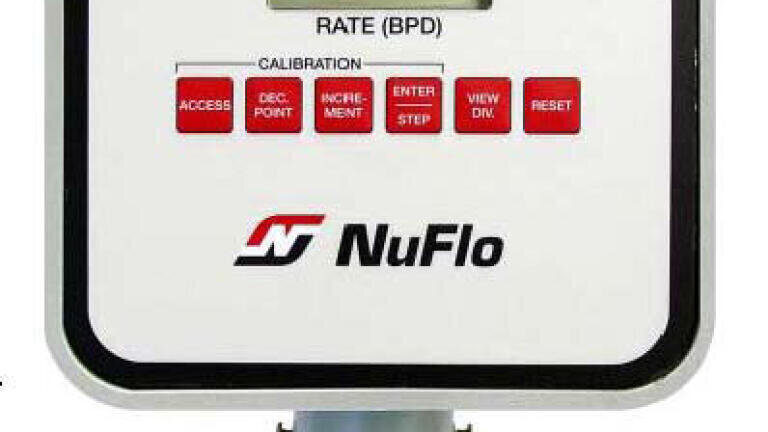

The NUFLO™ MC-II™ Flow Analyser from Cameron (USA) provides separate, continuous digital displays of flow rate and accumulated flow based on input from a turbine flowmeter. The low current consumption of its liquid crystal displays and CMOS microprocessor based circuitry enable years of dependable performance from a single lithium battery. Typical battery life is 3 to 5 years.

Totaliser readings can be made in any desired volumetric units, and flow rates can be measured in units per second, minute, hour, or day. Rate and total are quickly and easily calibrated using the keypad on the front of the MC-II. The instrument is suitable for outdoor installation and requires no additional protection from the weather. The unit may be mounted directly on the turbine meter or attached remotely. The flow analyser has the following ATEX certification; II 1G Ex ia IIC T4 IP66.
