eraspec X: The world's smallest MID-FTIR fuel analyzer

In a world where fuel quality defines performance, compliance, and profitability, fast and accurate analysis has never been more essential. The eraspec X from eralytics is redefining how and where precision fuel testing can happen. Compact, rugged, and incredibly fast, this new-generation mid-FTIR analyser brings lab-grade precision directly into the field.

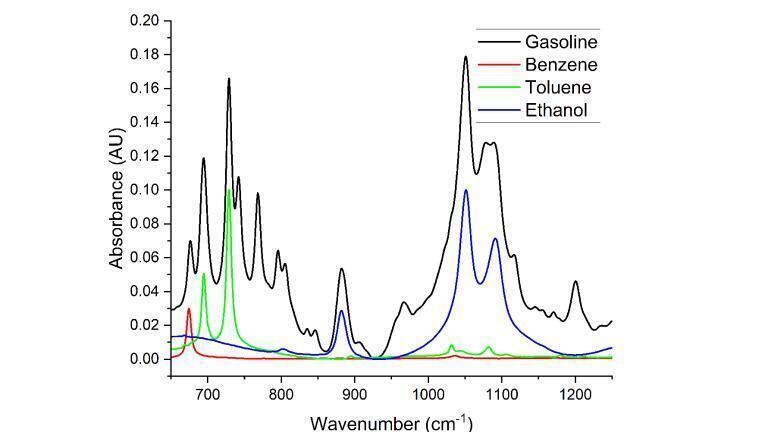

Built around a high-performance mid-infrared (FTIR) spectrometer, the eraspec X provides a detailed view of a fuel’s composition. In a single, fast measurement, it determines key quality indicators such as aromatics, oxygenates, and FAME content - parameters that traditionally required more complex and time-consuming gas chromatography (GC) analysis. By directly capturing the complete FTIR spectrum, the instrument produces a unique “fingerprint” for every fuel sample, enabling precise identification of fuel type, blending quality, and potential contamination.

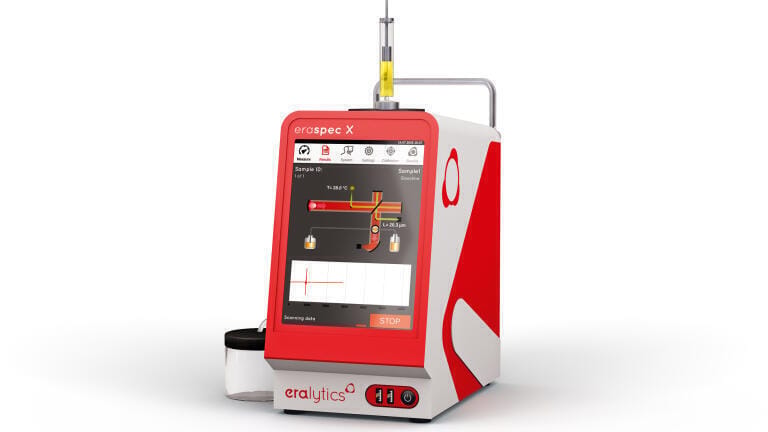

The eraspec X impresses with its solid full-metal aluminum housing and compact footprint, weighing only about seven kilograms. Despite its compact size, eraspec X delivers analytical precision identical to that of traditional benchtop FTIR systems. It requires only 3ml of sample and delivers results in under 60 seconds. The measurement cell features 20 µm and 100 µm path lengths, as well as an automated reference cell, to ensure consistent optical performance for different fuel types. The system is fully factory-calibrated, minimizing the need for frequent recalibration and enabling immediate use in the field.

The instrument supports a wide range of fuel types and parameters and is the ideal choice for the quantification of aromatics like benzene (ASTM D6277 or EN238) and oxygenates (ASTM D5845) in gasoline or FAME in diesel (ASTM D7806 or EN14078). Optional modules extend the capability to analyse ethanol and methanol fuels, and to predict fuel properties like RON/MON and distillation points via advanced chemometric models.

With its combination of robust engineering, established FTIR technology, and integrated data management, eraspec X represents a new generation of analyzers. For professionals seeking to maintain laboratory-quality standards beyond the confines of the lab, it offers both capability and confidence - wherever the work takes place. eraspec X delivers laboratory-grade certainty wherever it’s needed.
