CAC GAS Provides Longer Shelf Life for NO2

Mar 15 2022

Nitrogen dioxide (NO2) is one of a group of highly reactive gases known as oxides of nitrogen or nitrogen oxides (NOx). Other nitrogen oxides include nitrous acid and nitric acid. NO2 is used as the indicator for the larger group of nitrogen oxides.

The major cause of NO2 in the air is a result of incomplete combustion of fossil fuels with the highest concentrations resulting from diesel vehicles. Coal mining, buses and other diesel vehicles create the greatest hazard for ambient air exposure in mines, tunnels, and enclosed spaces such as repair garages.

NO2 along with nitric oxide, carbon dioxide and sulphur dioxide are all pollutants from power generation.

The main applications for calibration of NO2 instruments are for personal exposure gas monitoring, fixed area monitoring, emissions (EPA, CEMS) monitoring and exhaust gas measurement.

As the TWA and STEL values are so low, the requirement for nitrogen dioxide calibration gas for personal exposure gas monitoring has typically been either 5ppm or 10ppm. Nitrogen dioxide has been a challenging gas for many users of gas detection as the highly reactive gas had an extremely short shelf life in smaller non-refillable cylinders (previously was 7 months). This created issues with having the gas readily available for immediate requirements.

Fortunately, CAC GAS has solutions available today which can assist in resolving this issue.

New 12 Month Shelf Life for NO2 in Non-Refillable Cylinders

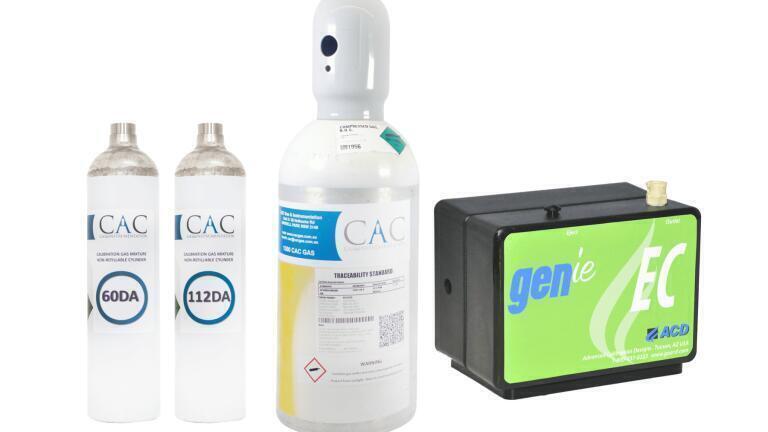

CAC GAS is now offering NO2 with an increased shelf life of 12 months from the previous 7 months. Now available in our 60L and 112L non-refillable cylinders.

Electronic gas generators

Electronic gas generators can often be a good solution. They can provide gas concentrations of NO2 down to as low .05ppm to 5ppm. Gas generators use an electrochemical cell which is long lasting. The same base unit can be used with other gas cells (CL2, CL02, HCN, H2S), providing flexibility for measuring other gases. Although an initial capital cost is required, they are very cost effective over time and provide a long-term solution. The electrochemical cell can be stored when not in use providing customers with NO2 gas when they need it, even for very infrequent requirements.

White Top Specialty Gas Cylinder

The 36-month shelf life “white top” specialty gas mixture cylinder is an excellent solution for those customers with multiple instruments. High pressure cylinders are available in larger capacities of 900 and 4000 litres of gas. These cylinders are specifically treated and conditioned to provide stability over this extended period. These cylinders are also available for our EPA and CEMS standards providing long term environmental monitoring solutions for all NO2 applications.

As has been demonstrated, there are multiple options for calibrating and bump testing NO2 instruments and sensors which can meet customers specific requirements. In addition to the above, CAC GAS also provides ISO17025 accredited NO2 in our 34L, 64L, and 112L cylinders with a 6-month shelf life and ISO17034 accredited NO2 in high pressure cylinders.

For further information on our calibration gas solutions for NO2 or any other application, contact us today.
