New Ultrasonic Pig Signaler

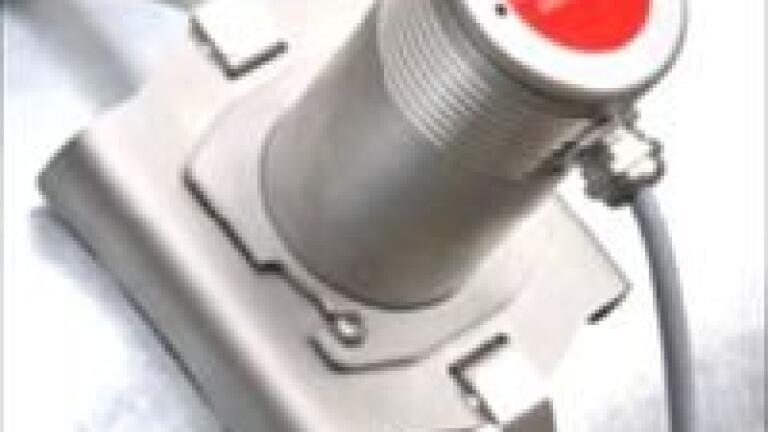

Sonotec`s (Germany) new ultrasonic Sonopipe pig signaler 12 was developed for the detection of pigs in pipelines. It controls the section of cleaning- and testing pigs in pipes for oil, liquid gases and water.
The advantage of this easy and reliable method is the outside coupling of the sensors around the pipes. They are able to detect whether there is a pig or just the product liquid right behind the wall. Environmental
risks, due to dangerous holes in pipeline walls, as in systems with mechanical pig detectors, now belong to the past for users of Sonopipe.
The sensor does not reach the inside of the pipes.
The installation is easy and can be carried out during line operations. The Sonoview software provided with the device helps to start operations. Since the ultrasonic sensor does not touch the liquids, there is practically no abrasion. The amount for maintenance is only small. The sensors can be applied for pipe diameters between 8 and 60".
Compared to methods working with radiation sources, the ultrasonic method is perilous. An effective electronic system, which is integrated within the measurement device, controls the frictionless operation, signalises the pig section and alarms in case of a failure.
The pig signaler includes the following components: a sensor, a measurement device as well as a pipe fastener. These devices have relay outputs, which can be integrated in process controls. Via further outputs it is possible to connect signal lamps and sirens as optional equipment. The sensors are certified after ATEX.
