New Series of High Performance Pressure Sensors

Feb 16 2012

Omega Engineering (UK) manufactures a wide range of pressure measurement devices from printed circuit board (PCB) mounted pressure sensors to high temperature & pressure sensors. The new PXM309 series pressure transducer is the latest to be introduced into the Omega pressure sensor range.

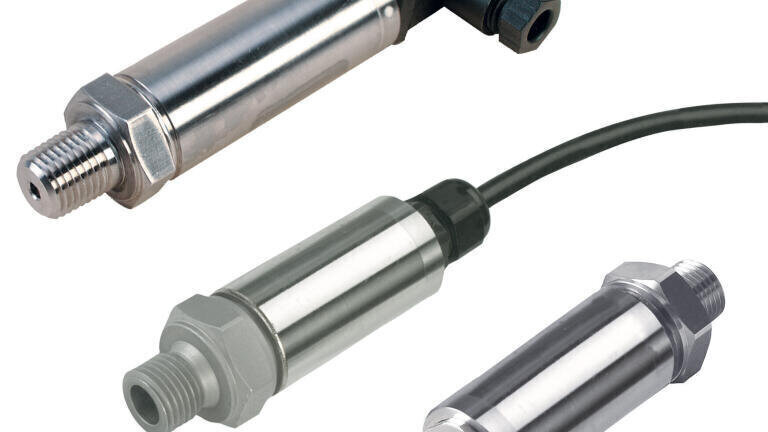

The PXM309 series is a high performance industrial pressure sensor, suitable for most hydraulic and pneumatic systems, with a fast 1 millisecond response time. The wetted parts are fully welded stainless steel for good compatibility with industrial fluids or gases. The process connection is a G1/4A (1/4”BSPP male) stainless steel fitting. There are three electrical terminations: 2 metre flying lead, mini DIN or M12 connectors. The electrical outputs available are either 0-10 Vdc or 4-20 mA, suitable for most PLC and control applications. There are 25 Pressure ranges available from 0-70 mbar up to 0-700 bar.

The complete range is available ex-stock for next day delivery and is supplied with a 5 point traceable calibration, produced in our factory during final inspection. All the PXM309 series are RoHS compliant and meet the current CE regulations.
