Automatic online gloss control

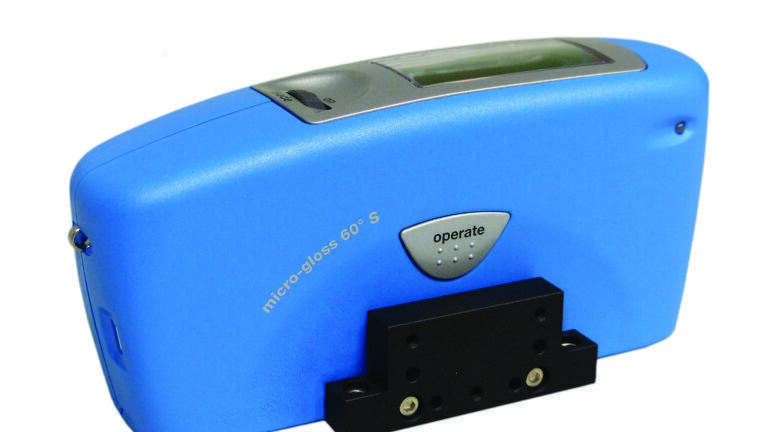

BYK-Gardner, a global leader in the field of measuring colour and appearance and testing physical properties of plastic, coatings and cosmetics is introducing a new member of the well proven micro-gloss family. The new micro-gloss 60° robotic enables automatic measurement of surface gloss.

Matt, satin-finished or glossy - uniform appearance stands for high quality. A stable running process is the key for uniform and consistent quality. Therefore, gloss needs to be measured on a routine basis in the production process and the measurement results need to be documented for clear communication. The new micro-gloss robotic allows automated gloss control to increase the sampling rate. With its robust mounting fixture, the meter can be integrated into a measuring cell, on a xy-table or similar set-ups. Thus, readings are always taken on the same sample area, which ensures repeatable positioning and reliable results. The lightweight of the unit and the fast data collection allow measuring a high number of parts. This provides complete and representative data for statistical process control enabling proactive reaction to process changes.

The long-term stable LED light source of the micro-gloss provides not only highly repeatable results for many readings and years, but also will never burn out. A 10 years warranty on the lamp life is guaranteed. Due to advanced temperature control, the micro-gloss assures highest stability of the gloss values. A high-tech, automated calibration procedure on a complete range of gloss tiles as final step in the meter’s production process guarantees outstanding technical performance including repeatability, inter-instrument agreement and temperature stability.

The reference tile for calibration is supplied in a special mounting track for fast calibration on a regular basis. The intelligent auto diagnosis of the micro-gloss notifies when the standard is dirty or damaged, which ensures reliable measurement at any time. Power supply occurs via the USB interface, as well as control of all measurement functions. The smart data communication allows direct and fast data transfer to the smart-chart software.
