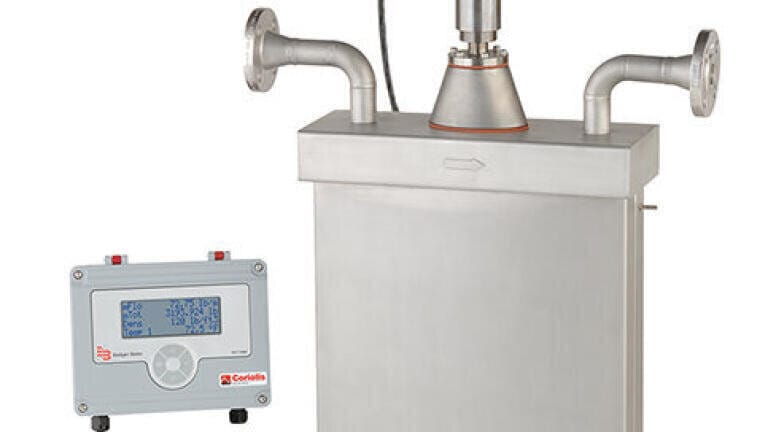

New Badger Meter RCT1000 Coriolis Flow Meter

Bell Flow Sytsems Introduces the RCT1000 Coriolis mass flow meter, the latest addition to Badger Meter USA’s growing product portfolio.

RCT1000 meters are especially suited to the precise measurement of high viscosity fluids, aggressive media and contaminated fluids as well as high density gases, whilst maintaining a wide turndown ratio. Typical applications for these mass flow meters will include filling or dosing oils, solvents and chemicals and measuring adhesives or binding materials, coatings and hardeners, dyes, vitamins and other additives.

Renowned for their outstanding accuracy and versatility in measuring challenging flow applications, Coriolis principle flow meters have been employed in a wide variety of industries and applications. Coriolis flow meters are true multi-variable instruments, which means that they provide simultaneous measurement of mass flow, density, temperature and volume flow.

A valuable feature of this design is the lack of internal moving parts, enabling the flow meter to experience little or no mechanical wear, resulting in a long operational life expectancy. These meters offer low cost maintenance operation and flexible integration options.

The RCT1000 is capable of controlling equipment, such as valves and pumps with PID and batch control signals. The transmitter features a user-lock feature to prevent accidental activation as well as a local LCD display with optical buttons which allow the operator to navigate the display through the glass without opening the enclosure.

Network communications options for this model include; EtherNet/IP, 4-20mA HART, Modbus TCP and Modbus RTU. The RCT1000 meters feature mass flow accuracy of -/+ 0.1% with a pressure range up to 2150 PSI (148 bar) and options for use in hazardous areas.
