Innovative Digital Flow Meter

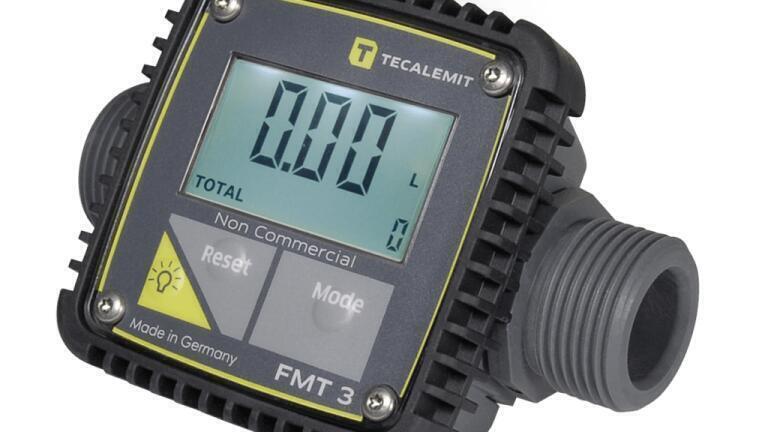

Introducing the latest product from German manufacturer - Tecalemit, a durable multi-purpose digital turbine flow meter, suitable for; diesel, fuel oil, water, antifreeze and Adblue®. Now available in the UK from Bell Flow Systems, the FMT 3 flow meter features a symmetrical measurement chamber allowing the device to be used with flow in both directions. Models are straight forward to operate and suitable for use in automotive environments and most downstream oil applications, where measured fluids display a wide range of viscosities.

The meter is ingress protected to IP65 and features a large illuminated LCD display with freely rotatable viewing angle, adjustable in 90 degree increments. A unique feature of this model within its’ target markets is the magnetically coupled operation ensuring total separation between wetted components and the display, which can be removed during operation . This is especially helpful for any future maintenance since it allows the user to replace just the LCD display, work on the existing line, or perform any future upgrades easily and safely.

With an accuracy reading of better than +/-1%, after initial calibration, the meter is ideal for applications where precise flow measurement is required. FMT 3 Meters will operate at flow rates of between 5-120 l/min and a maximum operating pressure of up to 10 bar (145 psi).
