Data Recording Enables Monitoring, Reporting & Management of Process Flow

Titan Enterprises (UK) has released a new data recording version of its Atrato ultrasonic flowmeter software interface.

Easy to set-up and use the Atrato flow recorder enables data recording via an external computer. With features that provide monitoring, reporting and management of flow data - the Atrato flow recorder delivers a continuous picture of your process and a reliable alternative to restrictive and costly manual metering.  The new software interface will be supplied with all new orders and can also be used with any Atrato flowmeter manufactured after June 2013.

The market leading Atrato ultrasonic flowmeter is a true inline non-invasive flow meter without the contorted flow path and disadvantages of alternative designs. It can handle flows from laminar to turbulent and is therefore largely immune from viscosity. It also offers excellent turndown, linearity and repeatability. Available in 60°C and 110°C temperature versions and a 30 bar higher pressure model - Atrato flowmeters use patented 'time-of-flight' ultrasonic technology that enables it to operate over very wide flow ranges (200:1) with excellent accuracy (better than ±1.0% of reading).

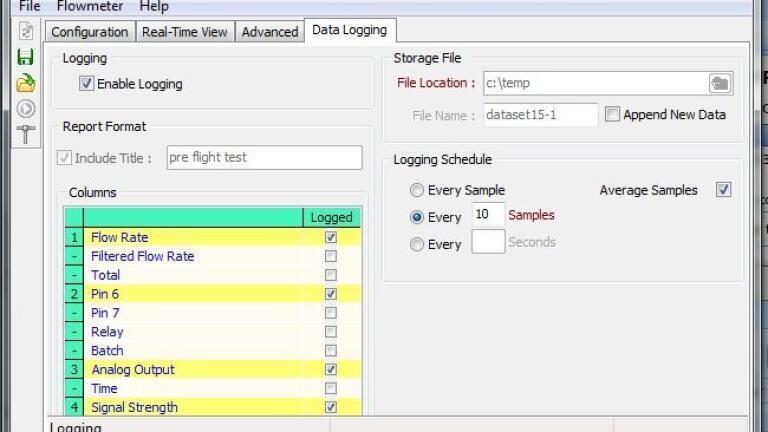

Using the new Atrato flow recorder - users can select from a wide variety of functions and time periods over which to store their results. Flow data sets are saved as .csv files which can then be imported directly to a wide range of programmes for later manipulation and analysis. Data recording can be set up to be every number of samples or actual readings averaged over a time period. Examples of data recorded include actual flow rate, filtered flow rate, total, output transistors, analogue outputs and ultrasonic signal strength.
