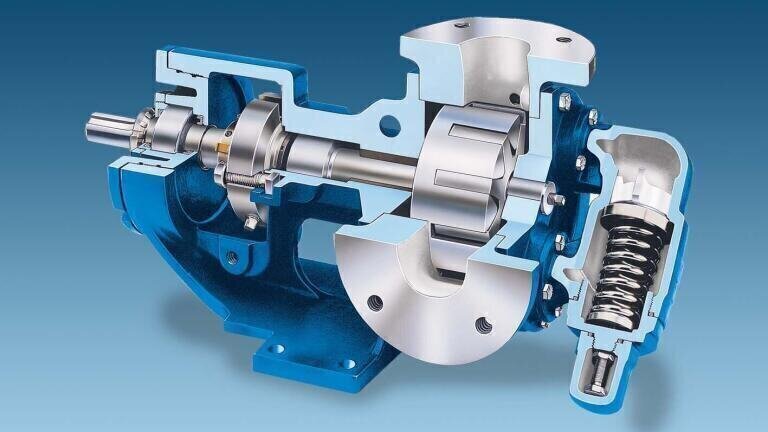

Tough and Easy-To-Maintain Heavy Duty Gear Pumps

Viking Universal Seal Pumps are designed to meet the demands of heavy-duty, industrial pumping applications and incorporate essential features for reliable, low-maintenance pumping, even in the most challenging environments.

Available from pumping specialists Michael Smith Engineers (UK) this range of internal gear pumps comprises 12 standard size options providing flow rates up to a maximum of 365 M3/Hr and pressures to 14 Bar. An important feature of Viking Universal Seal Pumps is that they are designed to accommodate virtually all types of seal. These can be packing, component or cartridge mechanical seals which can be easily fitted, usually without bracket modifications. This means that operators have the flexibility to benefit from the latest sealing technology to both maximise performance and to meet the ever-changing fugitive emissions standards.

Viking Universal Seal Pumps are easy to maintain as the simple design of their internal gear pumps means that there are only two moving parts. The back pullout design of the seal housing allows drive end access to the pump seal for quick and easy replacement without removing the pump or rotor, helping to keep downtime to a minimum. The seal housing is a solid one-piece cast bracket which helps reduce shaft deflection, so prolonging seal life.

The pumps are equipped with heavy duty bearings and bushings and so support of the pump shaft is enhanced which in turn helps extend the life of the pump and the seal.

As well as accommodating virtually all types of seal, the Universal Seal pumps are available in wide range of construction materials including cast iron, ductile iron, cast steel, stainless steel and alloy C allowing broad chemical compatibility with a huge range of liquids. There are also jacketing options available for all the critical areas of the pumps including the bracket, seal, casing, flanges, head and relief valve. This ensures that key components can be heated or cooled rapidly and accurately so allowing faster start-up and providing uniform, accurate temperature control.

The pumps can handle a wide range of liquids with viscosities from 0.1 to 440,000 cSt and are suitable for operation in applications with temperatures of -85ºC to + 425ºC. They are ideal for high volume, continuous duty liquids transfer across many industry sectors including, general processing, chemicals, oil & gas, refining and plastics.
