Emerson pressure and temperature transmitter diagnostics support plant safety and performance

Accurate pressure and temperature measurements are essential to safe and efficient petrochemical operations. But with wide-ranging diagnostic capabilities, modern measurement devices – such as Emerson’s Rosemount™ 4051S Pressure Transmitter and Rosemount 3144S Temperature Transmitter – can do much more than simply provide values to a control system. With diagnostics enabling the detection of various faults and issues that could result in inaccurate readings, these transmitters have now become intelligent assets actively supporting plant safety, performance and profitability.

Loop integrity

Among the most valuable diagnostic functions in modern pressure and temperature transmitters is loop integrity monitoring, which ensures the authenticity and stability of the 4-20 mA signal between transmitter and control system. While the 4–20 mA current loop has long been the industry standard, issues such as wiring faults, grounding errors or high loop resistance can distort readings without triggering a visible alarm. Loop integrity diagnostics continuously evaluate loop parameters, detecting abnormal resistance or current levels and issuing alerts when deviations occur. This allows maintenance teams to correct wiring or configuration problems before they affect plant performance. During plant start-up or following maintenance, when hundreds of loops may be reconnected, loop integrity diagnostics significantly reduce troubleshooting time and prevent costly start-up delays. They also confirm that the transmitter is communicating correctly with the control system and that its output accurately reflects process behaviour – providing confidence that all subsequent data rests on a solid, verified foundation.

Sensor and signal health

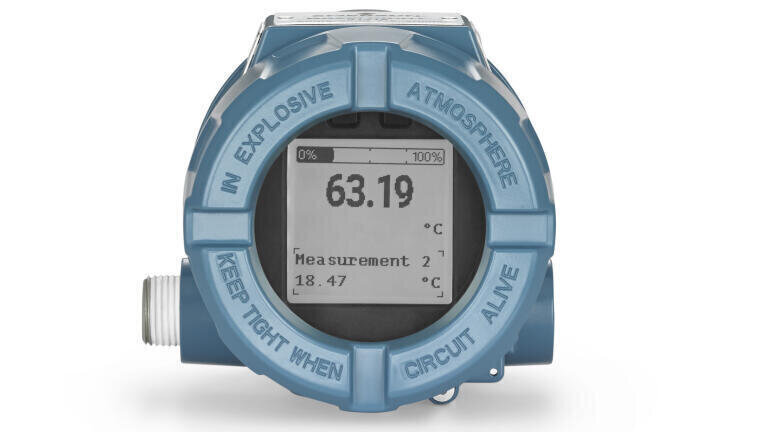

Advanced diagnostics also monitor the condition of the sensing elements themselves. Sensors inevitably experience wear, contamination or drift. The Rosemount 3144S Temperature Transmitter continuously checks the health of its resistance temperature detectors (RTDs) or thermocouples, detecting loose or corroded wires, or deviations from calibration. If a lead fails, the transmitter can automatically switch from four-wire to three-wire operation, maintaining measurement continuity and avoiding total signal loss

Process connection and path diagnostics

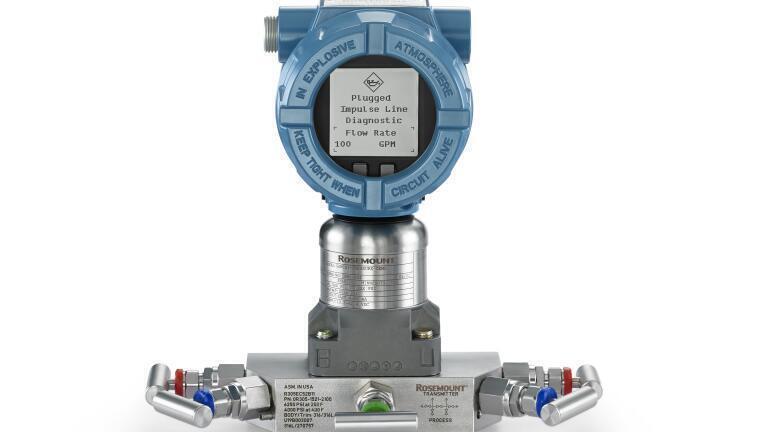

Measurement accuracy also depends on the integrity of the physical connection to the process, via impulse lines, thermowells, probes or antennas. Features such as impulse line plugging detection in the Rosemount 4051S Pressure Transmitter identify early signs of blockages by analysing dynamic pressure behaviour and distinguishing between normal fluctuations and plugging signatures. Maintenance can then be planned proactively rather than reactively.

Process intelligence

Beyond fault detection, modern transmitters extract insight from signal variability itself. What once appeared as ‘noise’ can reveal valuable information about the process. The Rosemount 4051S Pressure Transmitter can analyse high-frequency pressure variations to detect pump cavitation, entrained gas, steam leaks or flame instability. By establishing a baseline of normal behaviour, the transmitter identifies subtle deviations that point to emerging equipment or process issues, thereby supporting predictive maintenance and improved plant reliability.

To learn more, visit the website or watch these videos about the Rosemount 4051S Pressure Transmitter and Rosemount 3144S Temperature Transmitter.
