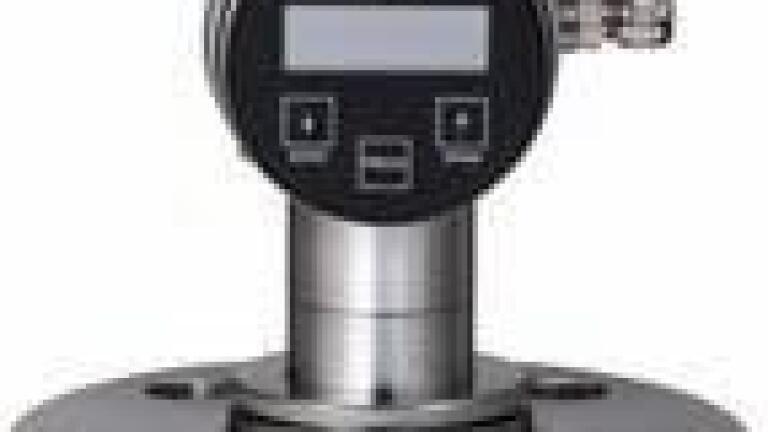

Intelligent Pressure Transmitters “All Stainless Steel”

Klay Instruments (The Netherlands) offers of a complete range of “All stainless steel” pressure and level transmitters. The series 2000 is a range of “Intelligent” pressure transmitters with local display

and adjustment by three push-buttons.

The push-buttons are used to set ‘Zero’ and ‘Span’ without test pressure. The display is used during programming to assist the easy operation.

Process temperatures can be shown and damping times can be adjusted. Also a 4-20 mA current simulation can be performed. Another feature is the easy way to calibrate a complete tank linearisation.

The Series 2000 is fully temperature compensated. Over 40 different process connections are available including many flush diaphragm designs.

Options include ATEX II1G approval, HART Protocol and Profibus PA output. There are also certificates available for marine applications (Lloyds Register, DNV, etc) as well as the food industry (EHEDG).
