Flow Level Pressure

  • New, robust and user-friendly general purpose monitor

New, robust and user-friendly general purpose monitor

Dec 17 2018 Read 543 Times

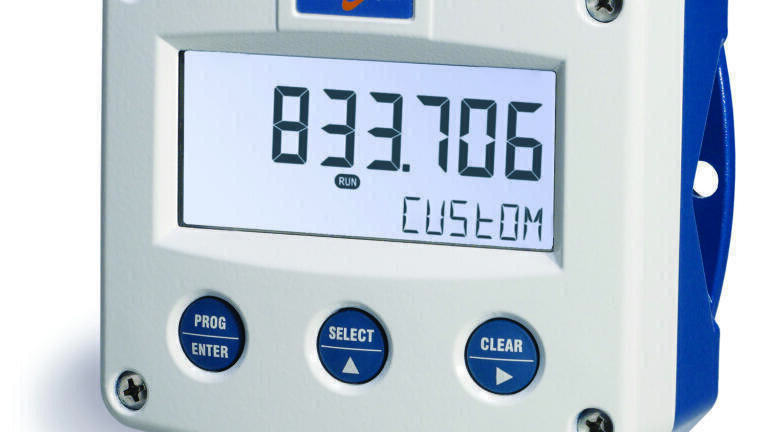

The F190, from Fluidwell, is a versatile General Purpose Indicator with continuous monitoring feature. Besides the focus on level, temperature and pressure applications (e.g. °C, °F, Bar, L, m3), the F190 can also work with other measuring units, like %, mA, RPM and more. Therefore, the F190 is a versatile system that suits many applications. Moreover, F190 enables the user to create his or her own custom unit with max. 8 characters.

The F190 accepts (0)4 - 20mA input signals from any type of analogue measurement device. It includes the facility to set two low and two high alarm values. The F190 combines the functionality of Fluidwell’s tried and tested F090, F143, F153 and F170. Thanks to its ruggedness, the F190 withstands extreme weather conditions like rain, snow, sun, sandy deserts, salty atmospheres and temperatures between -40°C/-40°F and +80°C/+178°F without the need for expensive protective cabinets. All products from the F-series are robust by design: you can even park a truck on them and they will not break!

The F190 has extensive mounting possibilities. Simply attach it to panels, to walls or on pipes. In fact, mounting, installing and programming the F-series is incredibly easy and user-friendly. Your own commissioning crews can swiftly execute installation themselves, saving the cost, time and hassle of hiring external specialists. This instrument is also Intrinsically Safe and has attained ATEX and IECEx approval for gas and dust applications

The configuration of the F190 is carried out via a simple, logical and menu-driven structure, instead of complex hardware changes or actions. The alphanumerical descriptions enhance the understanding of the system and its settings, contrary to regularly seen confusing abbreviations and difficult codes. F190 is, like all products in the F-Series, designed according the ‘Know one, know them all’ – principle. Once familiar with an F-Series product, users can program all models in all series without the need for a manual. Fluidwell enables users to save on programming time and costs, during installation and with each setting modification.
