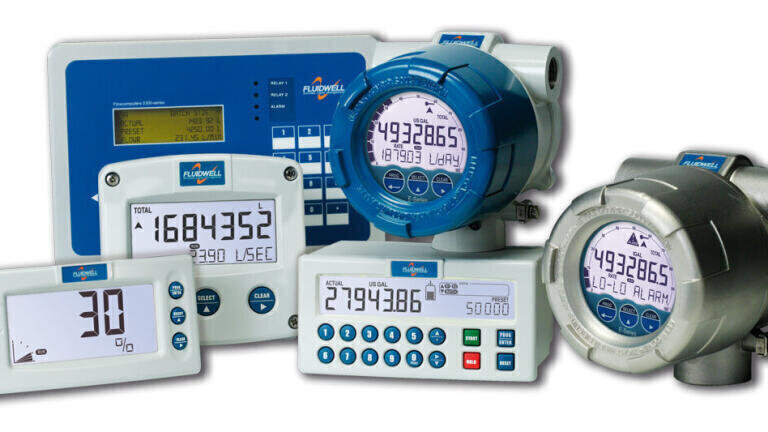

HART Registered Flow Monitor/Totaliser - “Explosion Proof” with a capital E

The Explosion Proof E018 Flow Monitor/Totaliser and the specific Device Description (DD) have been successfully validated by the HART Communication Foundation, thus meeting the requirements to be officially: “HART REGISTERED”. This guarantees it will operate hassle free with all registered "DD enabled host" systems. The specific DD allows access to every single menu setting. Fluidwell raises the user-friendly configuration to a new level!

New added value

“HART communication is one of the most popular industrial protocols today, due to the wide installed base of 4 - 20mA systems throughout the world.” says Eric Rath, General Manager of Fluidwell in the Netherlands. “The Explosion proof E018 with HART offers a reliable solution for applications where you want to benefit from the digital communication with intelligent field devices over existing analogue loops. Save time, cost and aggravation with the simple configuration, setup and troubleshooting. Optimise your process by transmitting the accurate measurement values to your smart control / monitoring systems.”

Explosion proof to the max!

The robust Stainless Steel 316L E-Series is designed with a focus on your safety. It’s beyond fulfilling the rules for hazardous area approvals, because the environment is often much tougher than explosion proof requirements demand. Experiencing flaws in your processes due to rain, snow, salty atmospheres (offshore) or early wear? Watch our durable E-Series totalisers deliver accurate measurement while withstanding the harshest conditions and bringing you ease of use.

“A solid die cast aluminum enclosure with the same ingress protection rating is available for cost effective applications.”, Eric adds.

Hazardous area information

The E-Series have been certified according ATEX, IECEx, FM and CSA C-US with an ambient temperature of -40°C to +70°C (-40°F to +158°F).

The ATEX markings are:

- Gas: Ex II 2 G Ex d IIC T6 Gb

- Dust: Ex II 2 D Ex tb IIIC T85°C Db

The IECEx markings are:

- Gas: Ex d IIC T6 Gb

- Dust: Ex tb IIIC T85°C Db

The FM and CSA _C-US markings are:

- XP (Explosion-proof): Class I, Division 1, Grps A, B, C, D.

- DIP (Dust-Ignition-proof): Class II/III, Division 1, Groups E, F and G. Class I, Zone 1, AEx d IIc T6 Gb, Zone 21, AEx tb IIIC T85°C Db.

Your Advantages

• Officially “HART REGISTERED” by the HART Communication Foundation.
• SMART communication over existing, installed base 4 - 20 mA analogue instrumentation loops.
• The robust Stainless Steel 316L E-Series is much tougher than explosion proof requirements demand.
• Explosion proof available: ATEX, IECEx, FM and CSA_C-US approval for gas and dust applications.
• Galvanically isolated, loop powered 4 - 20mA output according to the linearised flow rate.
• Programming can be done by your own crew, saving cost and aggravation.

Know one, know them all!

• Resistant to harsh weather conditions (rain, snow, salty atmospheres, temperatures of
  -40°C/-40°F to +80°C/+178°F).
• Simple configuration by using the HART communication protocol.
• Optimise your process by transmitting the accurate measurement values to your SMART control/ monitoring systems.
• Fifteen point linearisation of the flow curve - with interpolation.
• Clear flashing LED backlight in case of an alarm.
