Remote Display Multimeter brings Wireless Technology to Contact Electrical Measurement

Fluke (The Netherlands) has introduced the industry’s first digital multimeter with a detachable wireless display. The new Fluke 233 Digital Multimeter (DMM) uses a wireless transmitter to immediately send measurements to the detached display, improving safety and increasing productivity for industrial and commercial electricians and electronic technicians.

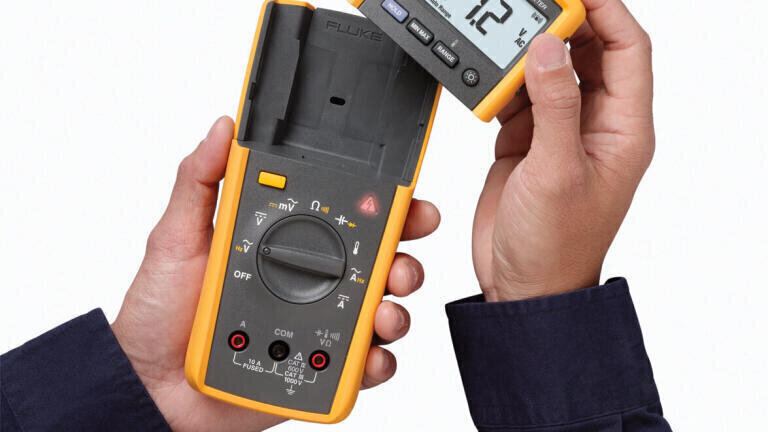

The Fluke 233 Remote Display Multimeter gives users ultimate flexibility in difficult test situations. By simply sliding the wireless display out of the meter body, the user can place the display where it is most easily seen, up to 10 metres from the point of measurement, while putting the meter in the best position to take measurements. The low-power, 2.4 GHz-ISM Band wireless signal that transmits measurement data is resistant to electromagnetic interference. The radio transmitter automatically turns on when the display is removed from the meter and off when the display is re-attached. The removable display is magnetic and has a flat bottom, so it can be conveniently mounted or placed on a flat surface where it can easily be seen. When the display is attached, the Fluke 233 operates as a conventional multimeter.

The Fluke 233 will measure up to 1000V AC and DC and up to 10A. It offers a 10,000 microF capacitance range, measures frequencies to 50kHz and captures min/max and average readings automatically. It features a 6,000-count display and includes a built-in thermometer that enables users to take temperature readings easily without carrying a separate instrument. An auto-off feature maximises battery life. The Fluke 233 is safety rated for use in CAT IV 600V/CAT III 1000V working environments.

Designed for both convenience and safety, the Fluke 233 makes it easier to take measurements in hard-to-reach places, or make measurements in machines or panels that are physically separated from a limit or isolator switch. It is ideal in areas where the operator cannot be close to the active measurement point, like clean rooms or hazardous areas. Making measurements without holding the meter can help users improve their visual focus on their test probes and work more safely.
