Innovative Custody-Transfer Accuracy for the Oil & Gas Industry

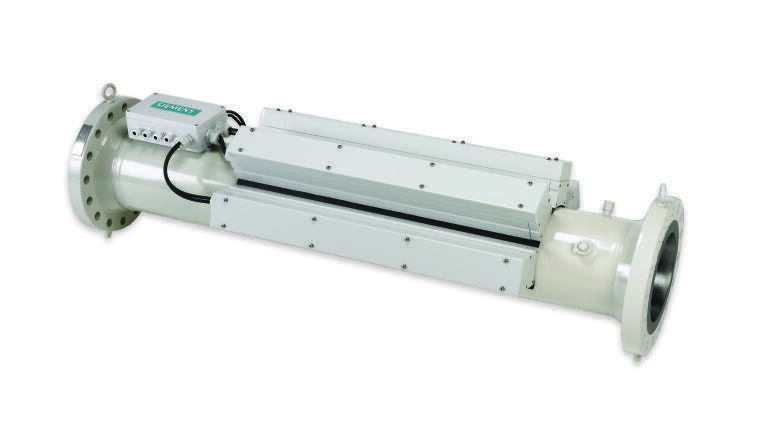

Siemens (USA) is known for combining deep industry knowledge with innovative thinking to meet the unique challenges faced by every industry. A prime example is the SITRANS FUT1010 ultrasonic flowmeter for the oil & gas industry, winner of a 2012 Innovation Award from Flow Control magazine.

The SITRANS FUT1010 offers custody-transfer accuracy for hydrocarbon applications – but what truly distinguishes it from the competition is the TransLoc mounting system. With TransLoc, the transducers are permanently mounted on the outside of the sensor, preventing contact with the medium and eliminating cavities that can lead to fouling. As a result, the meter is virtually maintenance-free.

The versatile SITRANS FUT1010 is available in both a liquid and gas version. Since the TransLoc system allows for laboratory calibration, the performance of the liquid version complies with OIML R117 and API recommendations. The meter also serves as a perfect replacement for intrusive densitometers. It is ideal for custody-transfer pipeline, terminal, refinery and transportation applications.

The gas version is compliant with AGA-9 and features an internal fixed AGA-8 table that allows for reporting of standard volume flow without a separate volume-compensating flow computer. It is well-suited for production wells, underground storage, gas processing, power plants and other applications with valve-generated acoustic noise.

The SITRANS FUT1010 meets stringent qualifications for use in numerous countries throughout the world. A variety of approvals is available, including INMETRO, CSA, FM, ATEX and CRN.

For any questions regarding the SITRANS FUT1010, please visit Siemens Industry Contact website at http://j.mp/SvFQtm.
