Self-sufficient and Contactless Flow Metering

Oct 08 2017 Read 491 Times

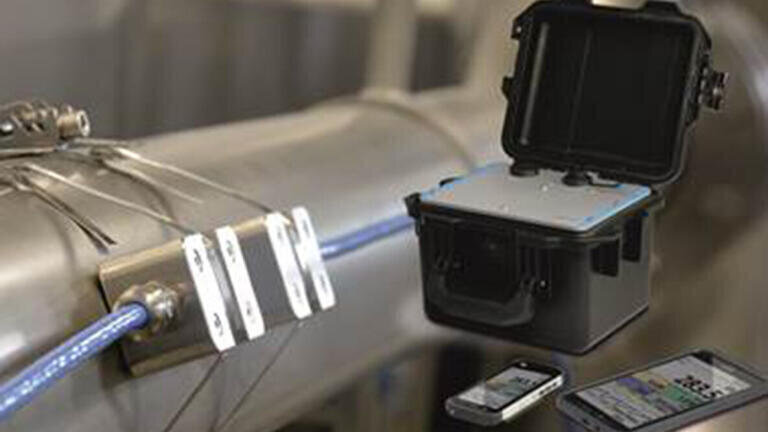

Nivus’ new mobile NivuFlow Mobile 600 flow transmitter has been developed specifically for long-term measurements in full pipelines. Very high endurance is achieved thanks to energy-efficient algorithms, performance-optimised sensors and high-capacity rechargeable batteries. Utilising a five-minute-cycle for measuring and recording, it is possible to measure for up to one year without battery replacement. Featuring 182.000 storage cycles, the internal data memory is designed for even longer measurement periods. Contactless clamp-on sensors and pipe sensors for direct measurement in the medium are available. Both sensor types share quick and easy mounting without the need to shut down running processes. The clamp-on sensors do not have any medium contact and are clamped onto the pipe outside.

Thanks to the high protection rating of sensors and transmitter (IP68) it is possible to operate the measurement system even under harsh ambient conditions. For example, batteries can be replaced by the operator even during heavy rain. This ensures uninterrupted measurements even for long-term projects.

The transmitter is controlled on site by using smart terminal devices such as smartphones, tablets or notebooks. Connection is set up using a WLAN created by the transmitter itself. No plug-ins or apps need to be installed to operate the system. During poor weather conditions, in strong sunlight or in case of limited access to the measurement site it is hence possible to operate the instrument from protected areas such as service vehicles etc.

Typical NivuFlow Mobile 600 applications are: leakage detection, pump verification, water supply monitoring, monitoring of inlets and outlets conducting cooling water or circulation systems as well as monitoring of process water and service water.
