New Universal Ultrasonic Gas Flowmeter

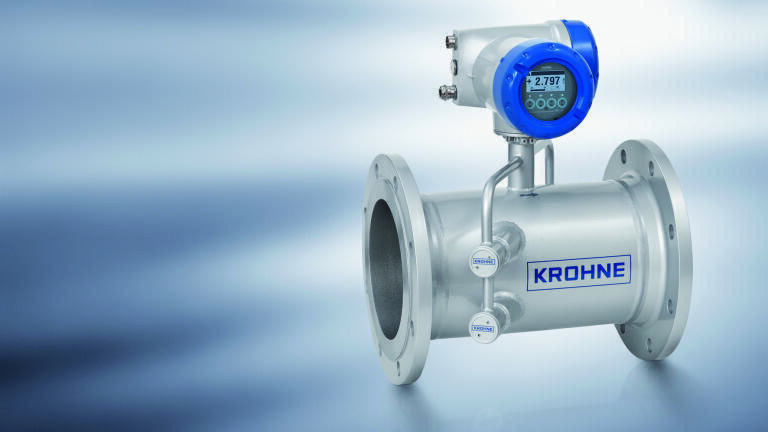

KROHNE, Inc. (USA) introduces its OPTISONIC 7300 universal ultrasonic gas flowmeter for process gas applications. KROHNE is completing its portfolio of gas meters, ranging from compressed air to custody transfer applications for natural gas. The OPTISONIC 7300 provides an economic solution for gas flow measurement in process and auxiliary measurements in oil and gas refineries, the chemical and the petrochemical industry and is the measurement of choice for non custody transfer natural gas applications. It also provides benefits to many other applications such as (compressed) air, mixed gas, steam or flue gas.

With the OPTISONIC 7300, process gas flows are always under control. The OPTISONIC 7300 is a 2-beam ultrasonic flowmeter that provides excellent long term measurement stability and repeatability. It delivers high performance over a wide flow range: it measures bi-directional from ± 30 m/s (± 90 ft/s) with an accuracy of 1 % of the measuring range. The OPTISONIC 7300 can be calibrated either dry or by using air or natural gas. As standard, it uses titanium transducers which are better focused, equalising process fluctuations and avoiding acoustic feedback; stainless steel transducers are available on request. Built for long-term use, the OPTISONIC 7300 features a maintenance free full bore flow sensor and an overall sturdy and robust construction with no cables or sensitive parts exposed. The maintenance free design with no moving parts in the flow sensor and the wide range of applications make using the device particularly cost-effective.

In many applications process gas volume is required at standard conditions.

The OPTISONIC 7300 provides calculation to standard conditions by using the input of temperature and pressure sensors which can be directly connected to the device. The electronics also include diagnostics to validate the functions of the flowmeter and the process. Modbus, FOUNDATION fieldbus and HART are included for field communication.
