New process EDXRF elemental analyser measures Al through U

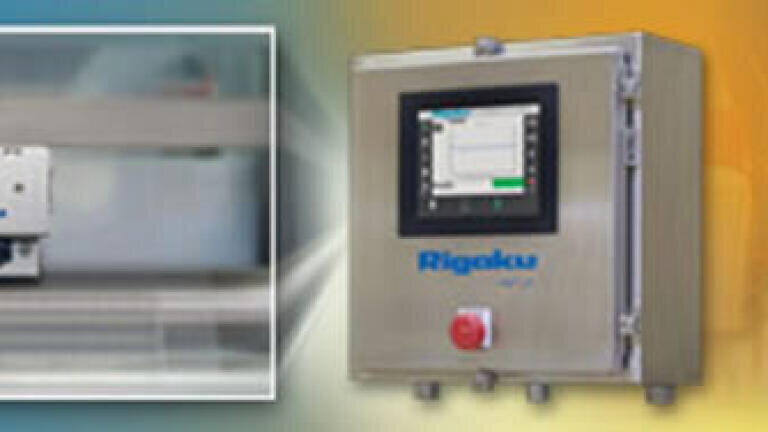

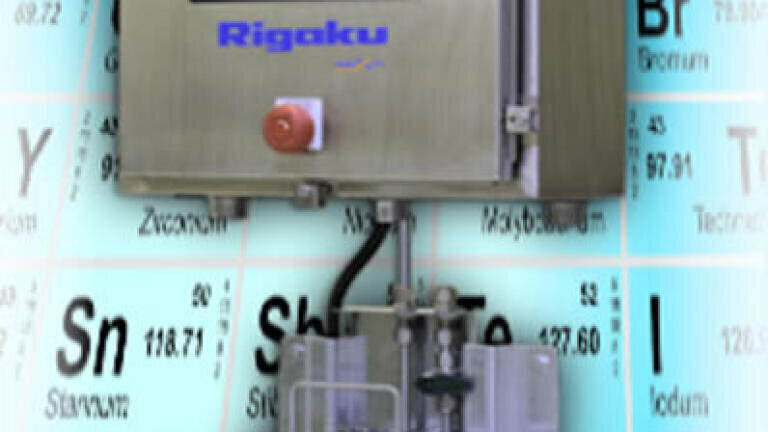

Featuring advanced 3rd generation energy dispersive X-ray fluorescence (EDXRF) technology, the Rigaku NEX OL represents the next evolution of process elemental analysis for liquid stream and fixed position web or coil applications. Designed to span from heavy industrial through to food grade process gauging solutions, the NEX OL is configurable for use in both classified and non-classified areas.

Analyse from aluminum (13Al) to uranium (92U)
To deliver superior analytical performance and reliability, the EDXRF measuring head assembly was derived from the established Rigaku NEX QC+ high resolution benchtop instrument. With this proven technology, the Rigaku NEX OL delivers rapid, non-destructive, multi-element analyses — from parts-per-million (ppm) levels to high weight percent (wt%) concentrations — for elements from aluminum (Al) through uranium (U). Equipped with a 50 kV X-ray tube and SDD detector — together with a standardised, optimised suite of tube filters — the Rigaku NEX OL is engineered to solve a broad range of process control applications.

Coating thickness and composition
In addition to analysing liquid streams, the Rigaku NEX OL is designed to service web and coil applications, with the ability to perform multi-element composition and/or coating thickness. Typically a head is mounted in a fixed position over a roller so that the head to surface distance is constant.

Features and benefits

  • Real-time process control by elemental analysis;
  • Measure elements 13Al to 92U;
  • From ppm levels to weight percent (wt%);
  • Robust NEX QC+ optics with SDD detector;
  • Industrial touch screen user interface;
  • Easy empirical calibration and routine operation;
  • Toolless routine maintenance;
  • Multiple remote analysis heads (non-classified); and
  • No dangerous radioisotopes.
