Performing In line/In Tank Biodiesel Content Analysis with the FPS2830 Biodiesel Sensor

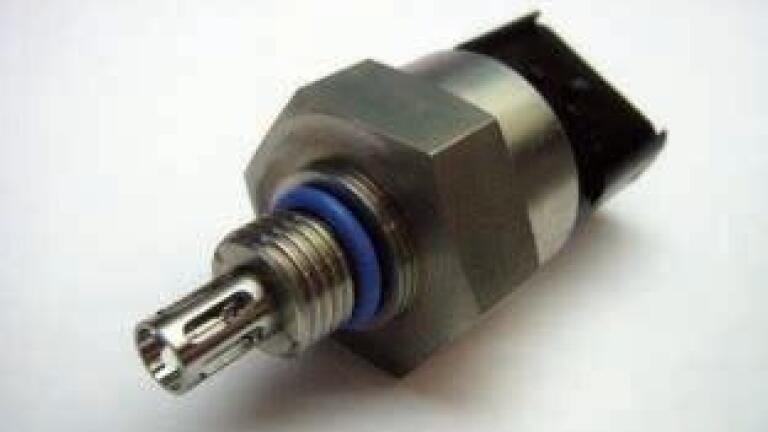

Based on a Tuning Fork flexural resonator for fluid properties measurement, MEAS France now provides an innovative, miniaturised and rugged Biodiesel sensor – FPS2830. The multi-parametric fuel properties measurement capability of the sensor allows direct and simultaneous measures of Fatty Acid Methyl Ester (FAME) content from 0 to 100% in Diesel fuel and fuel temperature from -40 to 150°C.

Designed for fuel environmental conditions, the Biodiesel Sensor – FPS2830 is a fully integrated self contained sensor assembly that integrates sensing elements and computing electronics within a unique mechanical package resistant to shock and vibrations. The M14x1.5 thread package allows both tank and in line mounting.

Real time communication to ECM in digital CAN format (SAEJ1939 protocol), coupled to 12/24V power supply, make the FPS2830 Biodiesel Sensor –the ideal tool for in line / in field fuel quality monitoring for both industrial and OEM applications. Analogue 0-5V output is also available on request.
