  • The Latest Generation of the Particle Measurement Evolved fro 25 Years of Tradition

The Latest Generation of the Particle Measurement Evolved fro 25 Years of Tradition

Apr 30 2009

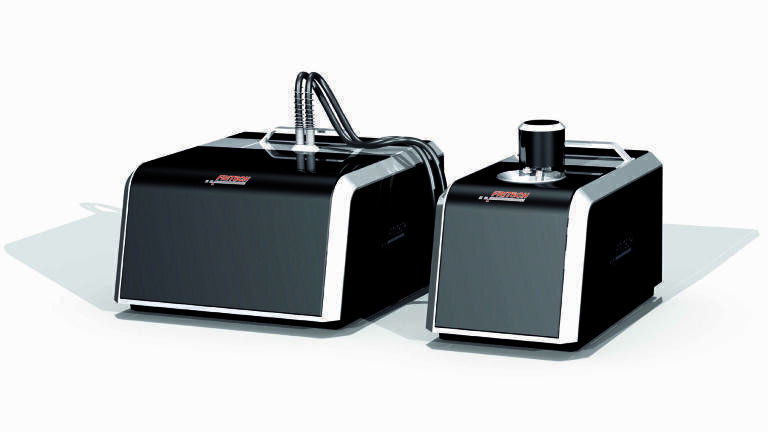

Fritsch’s (Germany) Analysette 22 MicroTec plus offers both a compact size and a compact price, with its extra wide measuring range of 0.08 – 2000 µm  and revolutionary dual-laser-technology among its many advantages.

Analysette 22 also has a Practical Module-System with Fast-Switch-System; the measuring cells of the new Analysette 22 MicroTec plusare located in convenient cartridges, which during the switch from wet to dry measurements are simply exchanged. Completely without tools! And when you are not momentarily using the cartridge, it’s simply stored in the corresponding dispersion unit.

This unit also offers a variable measuring range; with the Analysette 22 MicroTec plusyou may choose between two individual measuring ranges or combine both to a third. Your advantage: maximum flexibility, an overall measuring range from 0.08 μm – 2000 μm with an outstanding resolution of up to 108 measuring channels.

The Analyette 22 MicroTec plus is a remarkably powerful analyser. The wet dispersion unit is equipped with a very powerful centrifugal pump for the optimal transport of even heavy particles with a high concentration through the measurement system. With the help of an intelligent liquid-level-sensor, three individual amounts of liquids can be set by default and also the use of common organic solvents as suspension liquids is possible. All this, combined with an effective and variable ultrasonic-system, linked with an especially flexible software, which also manages even complex measurement sequences fully automatic and reproducible, result in a powerful system for challenging dispersion and measurement requirements as well.
