Fast Analysis of Particle Shape and Size of Suspensions, Emulsions, Powders and Bulk Solids

Mar 02 2018 Read 538 Times

FRITSCH’s Analysette 28 ImageSizer for dry and wet measurement is the ideal Particle Sizer for all applications that require accurate and reproducible measuring results for both particle shape and size. The optical process of Dynamic Image Analysis provides results for a wide measuring range, delivers multiple shape parameters and evaluation possibilities for particle size. The measuring time, depending on the sample quantity, is under 5 minutes. And the result is available immediately. Users therefore benefit from the Analysette 28’s great flexibility for different measurement tasks for particle sizes of 20 µm – 20 mm in quality control, research and laboratory and it offers a very easy and cost-effective alternative to sieving.

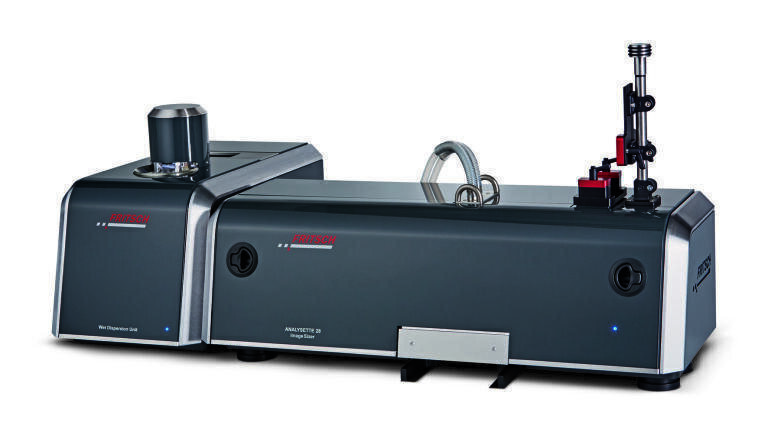

The Analysette 28 ImageSizer is, in combination with the corresponding wet dispersion unit, ideal for measurement of particle shape and size of suspensions and emulsions.

Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids.

With its extra wide measuring range of 20 μm – 2.8 mm, strong, freely adjustable ultrasonic power for deagglomeration, automatic rinsing cycle, fast and regular cleaning and extremely quiet dispersion with strong pumping power, the Analysette is user friendly, versatile and extremely precise. Benzine, alcohol and many organic solvents can also be used as suspension liquid as a standard feature.



The evaluation of the measuring results is uniquely simple with the ANALYSETTE 28 ImageSizer. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud as well as in the FRITSCH Gallery. You freely choose which statement is of interest to you: for example the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section. Or display the particle size distribution as a cumulative curve, as a bar chart or in a table form.

The state-of-the-art of uncomplicated evaluation: For fast single image viewing, each individual particle can be opened directly with a mouse click from the clearly arranged FRITSCH Cloud. The really important information for you about the morphology will be shown by the position of the data point in the Cloud. Without time-consuming search, you can immediately analyse, evaluate and delete individual selected particles. All available size and shape parameters are automatically displayed.

To get a quick overview of the typical particle shape of the analysed sample, view and evaluate all the images in a gallery which is integrated directly into the software for easy use. Individual particle images can be directly selected for single image analysis.
