One analyser for liquid, paste-like, solid, gaseous and LPG samples

Analytical instrumentation

One analyser for liquid, paste-like, solid, gaseous and LPG samples

18 Aug, 2010

Published over 16 years ago. See the latest and most current information on Analytical instrumentation.

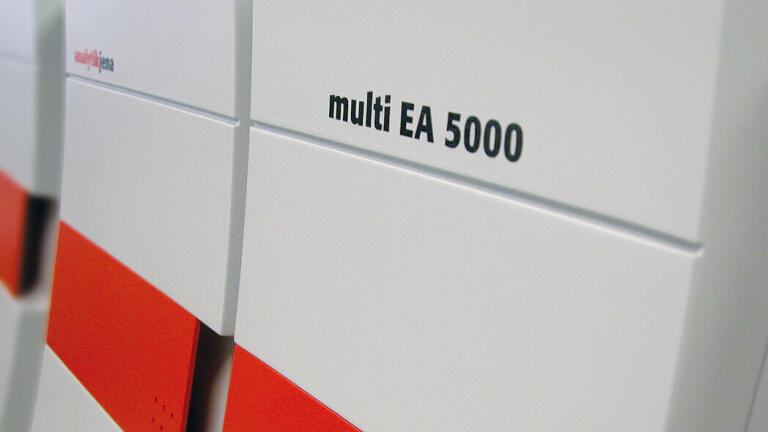

One minute S in diesel, next minute Cl in propylene gas, made possible by the multi EA® 5000. Analyze all parameters of one sample without converting the analysis system. The software and the extensive library of prefabricated method packages will help you select the appropriate method. This allows you to activate the right parameters easily. Using the multiWin® menu, you can permanently monitor all instrument functions and make individual changes to the settings, at any time.

The double furnace, with an incredibly easy-to-use tilting mechanism enables the system to be optimally adapted to your sample. For rapid and precise determination of liquids and gases, particularly in the trace range, the use of vertical systems has become standard. With the increase in complexity, volatility and viscosity of the samples, however, it is necessary to use the horizontal mode.

The determination of sulfur in various products from the refinement process in refineries (mineral oil, gases, fuels, heavy oil, bitumen, coke etc.), for example, currently requires one analyser for vertical operation and another for horizontal operation.

This is set to change. The multi EA® 5000 combines both modi in one and the same device. The furnace can be quickly set up vertically or horizontally in next to no time and is thus automatically fixed for safe operation. The use of only one multi-purpose combustion tube for all standard applications, whether horizontal or vertical, makes conversion child’s play. It is no longer necessary to change tubes.

Winning features of multi EA® 5000:

  • Application diversity, analyzes solid, paste, fluid, gaseous and LPG samples
  • Multi-element, with C, N, S and Cl determination in one instrument
  • Multimatrix sampler, for fully automated determination of solid and fluid samples in vertical or horizontal furnace configuration
  • Double furnace technology, optimal adaptation to the sample matrix – vertical and horizontal mode in a single instrument
  • Extended measuring range with low maintenance, ultra-modern detectors, all the way from ppb to percent
  • Modular design, freedom to select and extend your analysis system configuration
  • Self Check System (SCS) for trouble-free operation
  • Flame sensor technology for matrix-optimized sample digestion

The multi EA® 5000 – the highest precision, fastest and safest, yet still most convenient analyser.
