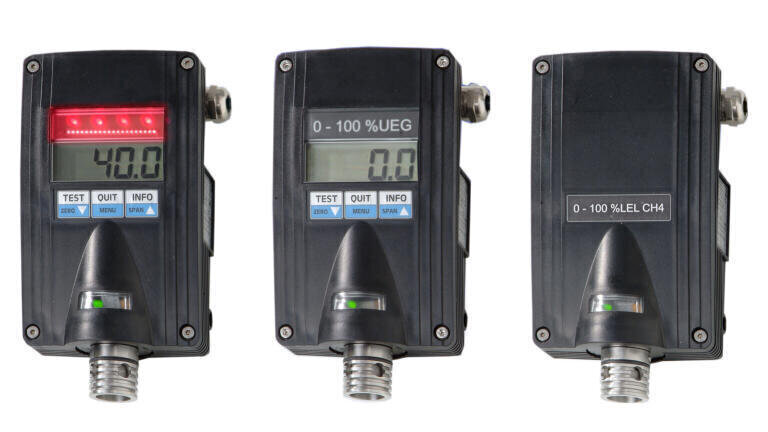

ATEX Transmitter Offers the Fastest Monitoring of Flammable Gases

Wherever flammable gases or vapours are found, GfG’s (Germany) CC28 provides the best solution for safe monitoring. ATEX-certified design, built-in EX-certified horn and bright LED lights allow safe operation within highly flammable areas. The gas alarm is transmitted to the central control panel, simultaneously warning the control room and the worker in the danger area.

Using GfG’s unique sensor technology, coupled with a special "chimney-effect" the CC28 transmitter has the shortest response time in the market, detecting flammable gases using catalytic bead technology.When used in conjunction with our GMA controller series, a programmed delta alarm can shorten the response time still further. This gives an extra level of safety when handling explosive gas risks.

Installation and sensor exchange are quick and easy using pre-calibrated smart, plug-in sensors. One-man calibration/ adjustment is possible directly at the transmitter, without opening the housing.

Some flammable gases are lighter than air (e.g. methane). If a transmitter is installed close to the ceiling, it can be connected by a fixed installed cable with a plug connection to the remote control. Thus, all adjustments can be made comfortably from floor level. With one remote control device, an unlimited number of transmitters can be controlled in this way. Using transmitters without display, the remote control shows the current values on its’ own display. The display of the remote control mimics the transmitter display exactly. Inspection, maintenance and adjustment are therefore greatly simplified. Using the remote control inspection, service and calibration can be performed easily by one person.
