ATEX Certified Oxygen Analyser for PPB, PPM, Trace and Percent Level O2 Measurements

16 Jan, 2008

Published over 18 years ago. See the latest and most current information on Measurement and testing.

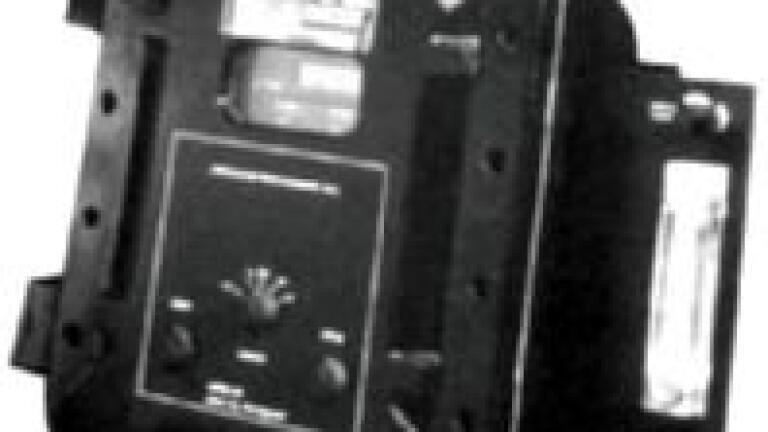

Advanced Instruments (USA) GPR-18MS/18/28 series Online Oxygen Analyser combines their proven advanced galvanic electrochemical oxygen sensor with its fast response and long life design with a newly acquired ATEX Certification (Ex d IIB+H2 T6, CE) for hazardous area classification Class 1, Division 1, Groups B, C, D service and is NEMA 3/4/7/9 rated.

The GPR-18MS/18/28 is linear over all full scale (F.S.) ranges of analysis: 0 – 1 parts-per-million (ppm), 0 – 10, 0-100, 0-1000, 0-1%, 0 – 5%, 0 – 10%, 0-25%. The O2 analyser comes with a 5ppb sensitivity and 1ppb resolution from the LED display. The precision stainless steel sensor housing, wetted parts and enhanced temperature compensation

circuitry produce accuracy / repeatability of < 0.5% F.S. with an expected life of 24 – 60 months. A signal output of 4 – 20mA and 0-1VDC is provided. The compact, disposable oxygen sensor design requires no

maintenance and features < 0.5% accuracy under constant conditions along with a fast 7 second response time. The high current output also reduces the temperature dependence at low oxygen levels and produces a very stable signal output that lengthens calibration intervals. This allows the sensor to exhibit superior performance in inert gases, gaseous hydrocarbons, acid and mixed gases.
