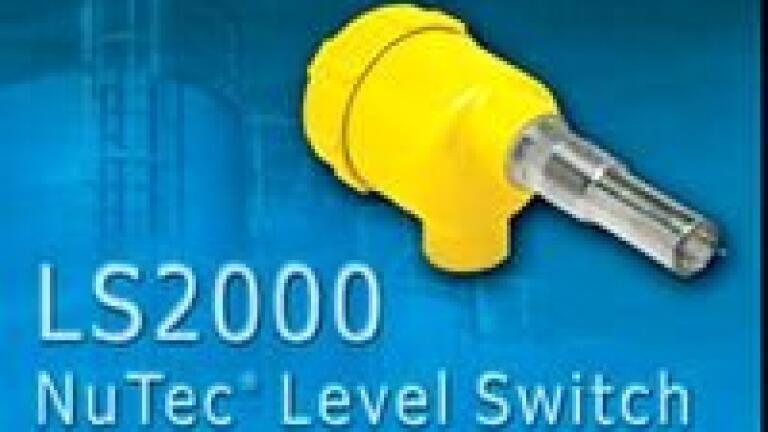

Two-wire, Loop-power Level Switch for Tank Monitoring and Interface Control
Oct 28 2008
process industries that require precise measurement, low maintenance, longlife and low instrument cost-of-ownership.
The LS2000 Level Switch is designed for two-wire, 4 to 20 mA loop power that allows the LS2000 to serve as a dropin replacement for other two-wire mechanical float and paddle switches without any wiring modifications during plant retrofit projects, which simplifies
installation and reduces cost. The LS2000 is also available for 115/230 Vac or 24 Vdc input power and a 6A relay output.
The LS2000 Level Switch features an advanced no-moving parts thermal
mass flow sensor constructed with either 304/305 stainless steel or with 316L all welded stainless steel with wetted surfaces for rugged environments. With no moving parts to break, maintenance is virtually unnecessary after installation.
Highly accurate, the LS2000 Level Switch in its top mount configuration
measures level within +0.25 inch (6mm) from its element tip. The side mount configuration is accurate to +0.125 (3mm). It is fully temperature
compensated for process and plant environment swings of up to +100F
(+38Â°C) to provide exceptional measurement accuracy and stability under
Designed for service in tank and sump level applications, as well as
fill/drain control and overflow detection, the LS2000 Level Switch is a versatile instrument. It is also highly responsive, sensing dry-to-wet conditions in less than 2 seconds, wet-to-dry in less than 5 seconds and wet-to-wet interface in less than 10 seconds. The LS2000âs advanced thermal mass flow sensing technology makes it suitable for detecting and controlling interface in tanks and separation vessels. It is especially useful in identifying the interface of multiple media, such as liquids and foams or liquids and sedimentsâeven liquids and resins.
The rugged LS2000âs level sensor operates at temperatures from -40 to
+250Â°F (-40 to 121Â°C) and at pressures to 500 psig (35 bar [g]) for use in demanding processes. Its aluminum enclosure is rated NEMA 4X (IP66) for harsh environments. Approvals and ratings include: Class I and II, Div 1 and 2, Groups C and D, as well as FM, CSA, CE marking and ATEX (pending).
Compatible with clean media or dirty, slurry or foaming media, the LS2000 Level Switch operates with a precision thermal mass flow sensor. Its two highly stable platinum RTD sensors are mounted in fully sealed, miniature thermowells that ensure long and dependable operation in even the dirtiest of media and plant conditions. Its miniature sensor design ensures both fast-response and superior repeatability under all process conditions.
